TOYOTA ARISTO JZS161-BEPVZ / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

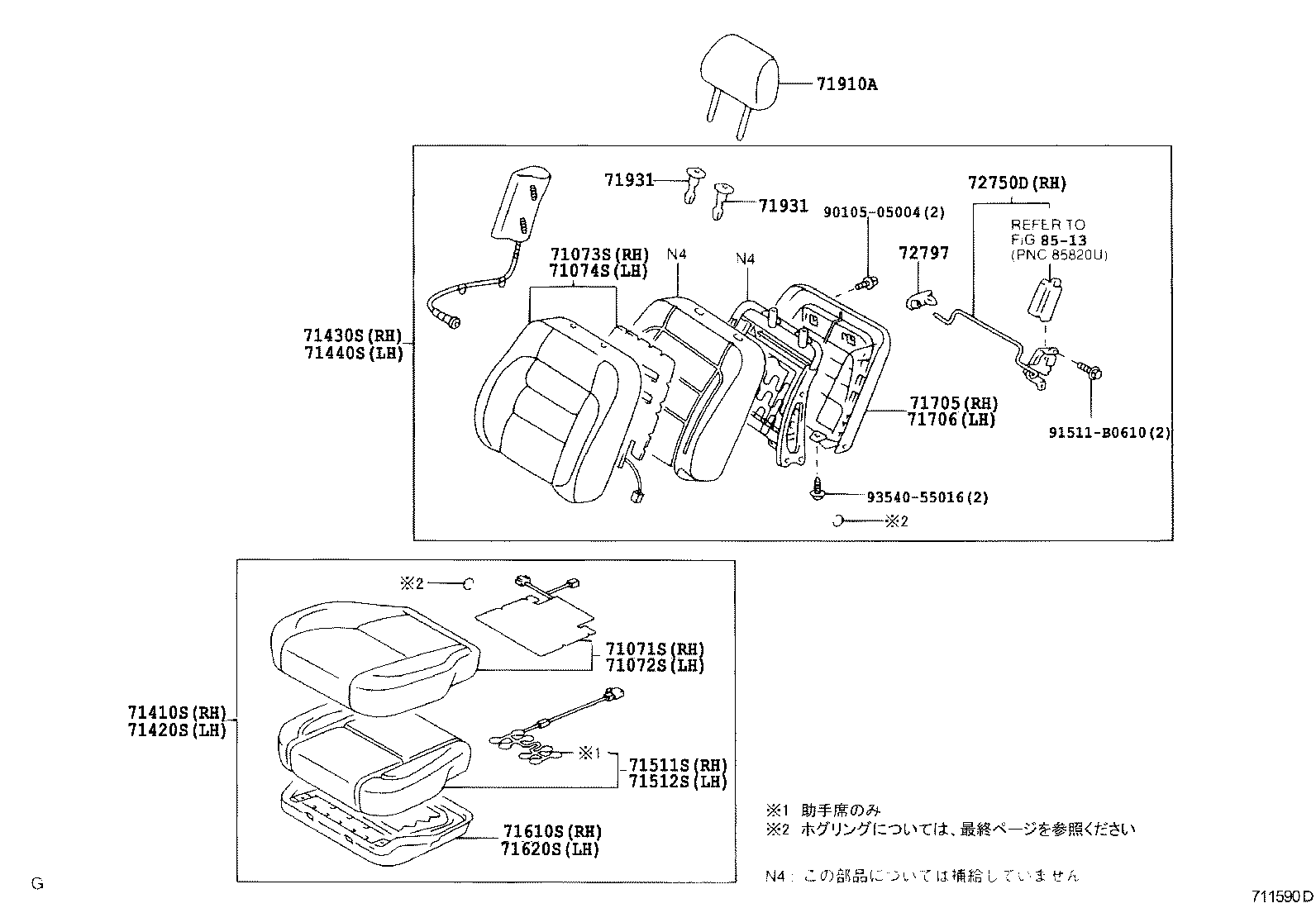

FRONT SEAT SEAT TRACK

ｱﾘ(ｼ-ﾄ ﾋ-ﾀ) ILLUST NO. 1 OF 2(9708- )

ARISTO | FRONT SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 72797 - SPACER, LUMBAR SUPPORT ** Refer Fig ** Std Part ** Std Part ** Std Part
