TOYOTA ARISTO JZS161-BEPVZ / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

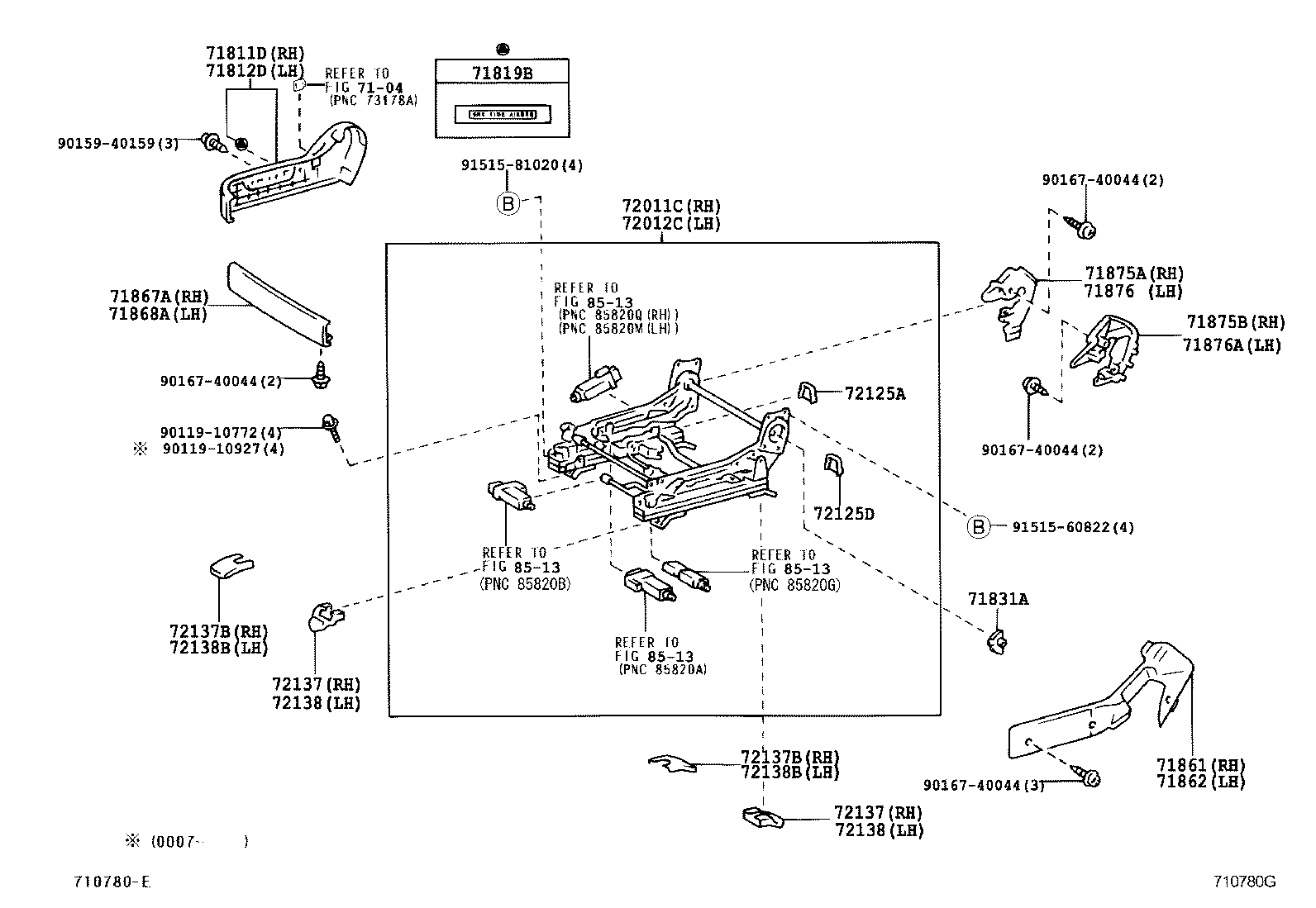

FRONT SEAT SEAT TRACK

ILLUST NO. 2 OF 2(9708- )

ARISTO | FRONT SEAT SEAT TRACK ** Refer Fig 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71819B - LABEL, SIDE AIR BAG NAME 71831A - COVER, FRONT SEAT HINGE 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72125A - COVER, SEAT TRACK, UPPER REAR 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 72137 - COVER, SEAT TRACK OUTER, RH 72137 - COVER, SEAT TRACK OUTER, RH 72137B - COVER, SEAT TRACK, RH 72137B - COVER, SEAT TRACK, RH 72138 - COVER, SEAT TRACK OUTER, LH 72138 - COVER, SEAT TRACK OUTER, LH 72138B - COVER, SEAT TRACK, LH 72138B - COVER, SEAT TRACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
