TOYOTA HIACE REGIUSACE KZH116G-GHMDT / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

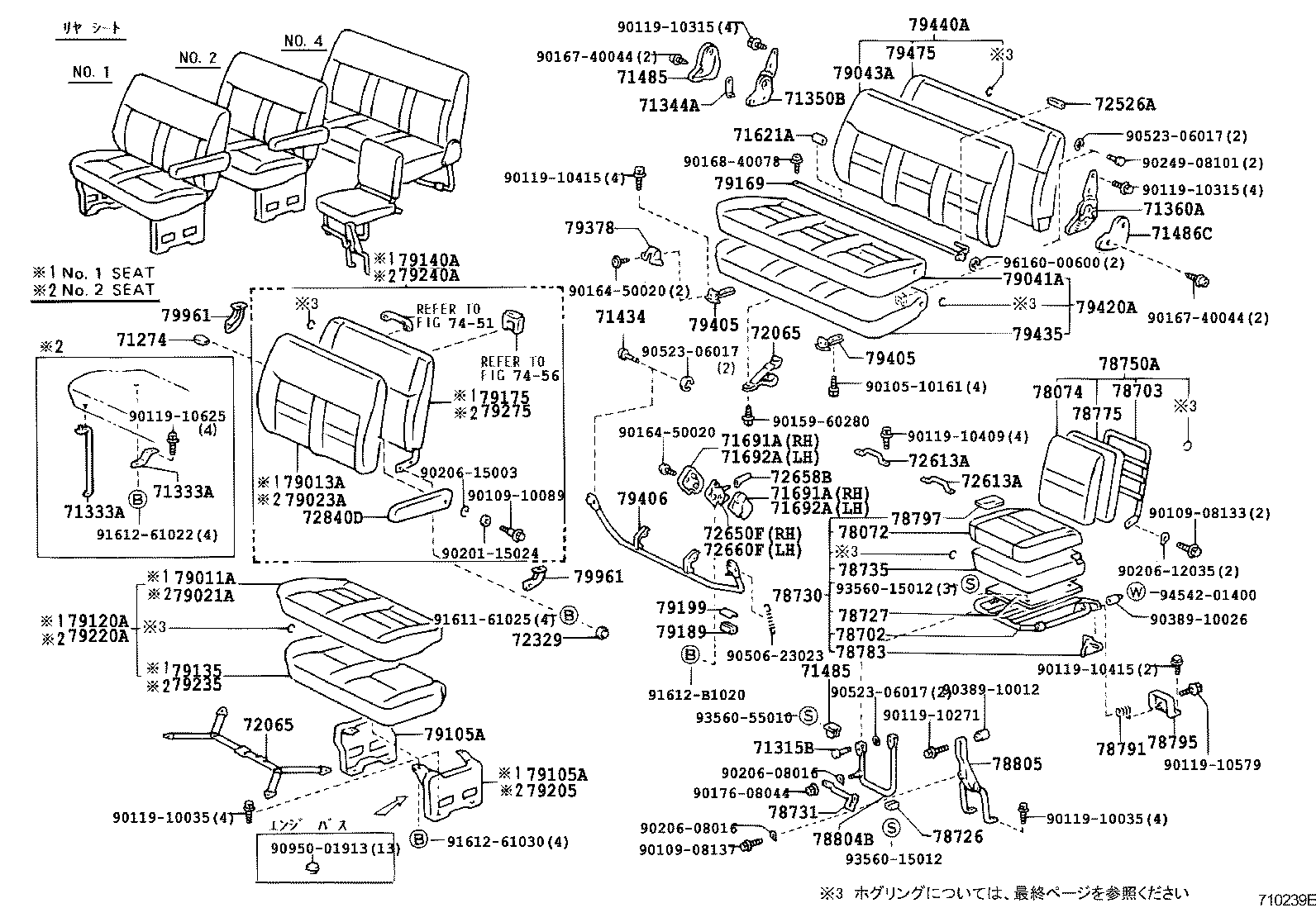

SEAT SEAT TRACK

ILLUST NO. 2 OF 4(8908- )KZH11#,LH110,117,RZH110,111..DX

HIACE REGIUSACE | SEAT SEAT TRACK 71274 - KNOB, FRONT SEAT HINGE 71315B - PIN, REAR SEAT HINGE 71333A - LEG, REAR SEAT CUSHION, NO.2 71333A - LEG, REAR SEAT CUSHION, NO.2 71344A - PLATE, REAR SEAT CUSHION HINGE 71350B - HINGE ASSY, REAR SEAT, RH 71360A - HINGE ASSY, REAR SEAT, LH 71434 - PIN, REAR SEAT CUSHION LEG, REAR 71485 - COVER, REAR SEAT HINGE 71485 - COVER, REAR SEAT HINGE 71486C - COVER, REAR SEAT HINGE, LH 71621A - PAD, REAR SEAT CUSHION SILENCER, A 71691A - COVER, REAR NO.3 SEAT LOCK, RH 71691A - COVER, REAR NO.3 SEAT LOCK, RH 71692A - COVER, REAR NO.3 SEAT LOCK, LH 71692A - COVER, REAR NO.3 SEAT LOCK, LH 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH 72329 - COVER, SEAT ADJUSTER BOLT 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72613A - STRIKER, FRONT SEAT LOCK 72613A - STRIKER, FRONT SEAT LOCK 72650F - LOCK ASSY, REAR SEAT, RH 72658B - KNOB, REAR SEAT LOCK HANDLE 72660F - LOCK ASSY, REAR SEAT, LH 72840D - ARMREST ASSY, REAR SEAT, LH ** Refer Fig ** Refer Fig 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH 78703 - FRAME SUB-ASSY, SUB SEAT BACK 78726 - CUSHION, SUB SEAT CUSHION FRAME 78727 - BOARD, SUB SEAT CUSHION 78730 - CUSHION ASSY, SUB SEAT, LH 78731 - ARM, SUB SEAT LINK, NO.1 78735 - PAD, SUB SEAT CUSHION 78750A - BACK ASSY, SUB SEAT, LH 78775 - PAD, SUB SEAT BACK 78783 - COVER, SUB SEAT HINGE, LH 78791 - SPRING, SUB SEAT LINK, NO.1 78795 - BRACKET, SUB SEAT, NO.2 78797 - COVER, SUB SEAT 78804B - LEG SUB-ASSY, SUB SEAT, LH 78805 - BRACKET SUB-ASSY, SUB SEAT CUSHION, REAR RH 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION 79023A - COVER SUB-ASSY, NO.2 SEAT BACK 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION 79043A - COVER SUB-ASSY, NO.4 SEAT BACK 79105A - LEG SUB-ASSY, NO.1 SEAT 79105A - LEG SUB-ASSY, NO.1 SEAT 79120A - CUSHION ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79140A - BACK ASSY, NO.1 SEAT 79169 - ROD, REAR SEAT HINGE CONNECTOR 79175 - PAD, NO.1 SEAT BACK 79189 - STOPPER, NO.1 SEAT LEG 79199 - HOLDER, NO.1 SEAT LEG STOPPER 79205 - LEG SUB-ASSY, NO.2 SEAT 79220A - CUSHION ASSY, NO.2 SEAT 79235 - PAD, NO.2 SEAT CUSHION 79240A - BACK ASSY, NO.2 SEAT 79275 - PAD, NO.2 SEAT BACK 79378 - COVER, NO.3 SEAT CUSHION HINGE 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR 79420A - CUSHION ASSY, NO.4 SEAT 79435 - PAD, NO.4 SEAT CUSHION 79440A - BACK ASSY, NO.4 SEAT 79475 - PAD, NO.4 SEAT BACK 79961 - COVER, NO.1 SEAT BACK 79961 - COVER, NO.1 SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
