TOYOTA HIACE REGIUSACE KZH116G-GHMDT / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

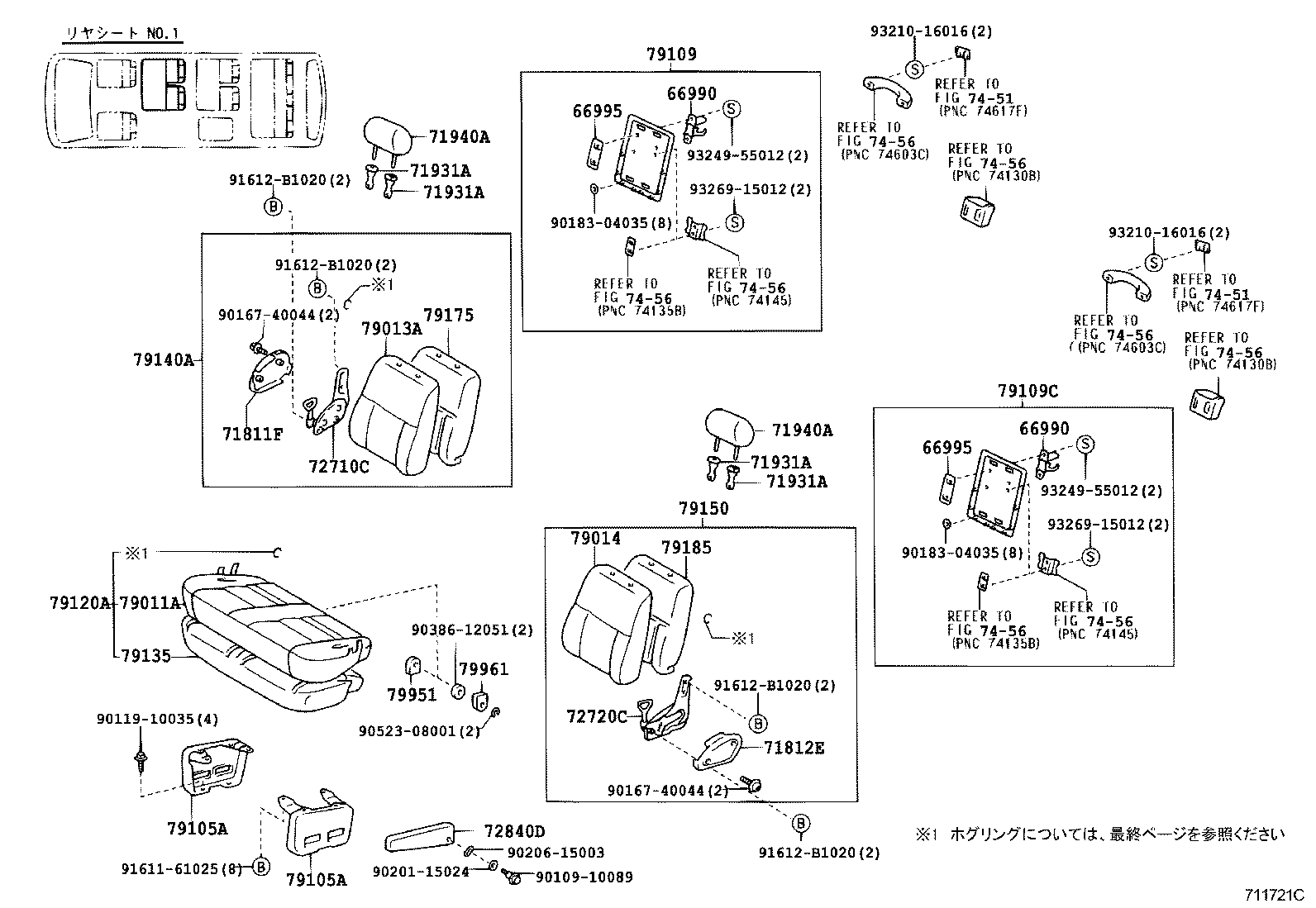

SEAT SEAT TRACK

グランドキヤビン ILLUST NO. 2 OF 4(9308- )KZH11#

 HIACE REGIUSACE |  SEAT SEAT TRACK 66990 - HOLDER ASSY, CUP 66990 - HOLDER ASSY, CUP 66995 - RETAINER, CUP HOLDER 66995 - RETAINER, CUP HOLDER 71811F - COVER, RECLINING ADJUSTER, RH 71812E - COVER, RECLINING ADJUSTER, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH 72840D - ARMREST ASSY, REAR SEAT, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH 79105A - LEG SUB-ASSY, NO.1 SEAT 79105A - LEG SUB-ASSY, NO.1 SEAT 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH 79120A - CUSHION ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79140A - BACK ASSY, NO.1 SEAT 79150 - BACK ASSY, NO.1 SEAT, LH 79175 - PAD, NO.1 SEAT BACK 79185 - PAD, NO.1 SEAT BACK, LH 79951 - COVER, NO.1 SEAT CUSHION 79961 - COVER, NO.1 SEAT BACK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
