TOYOTA DYNA TOYOACE XZU344-TQMQW3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

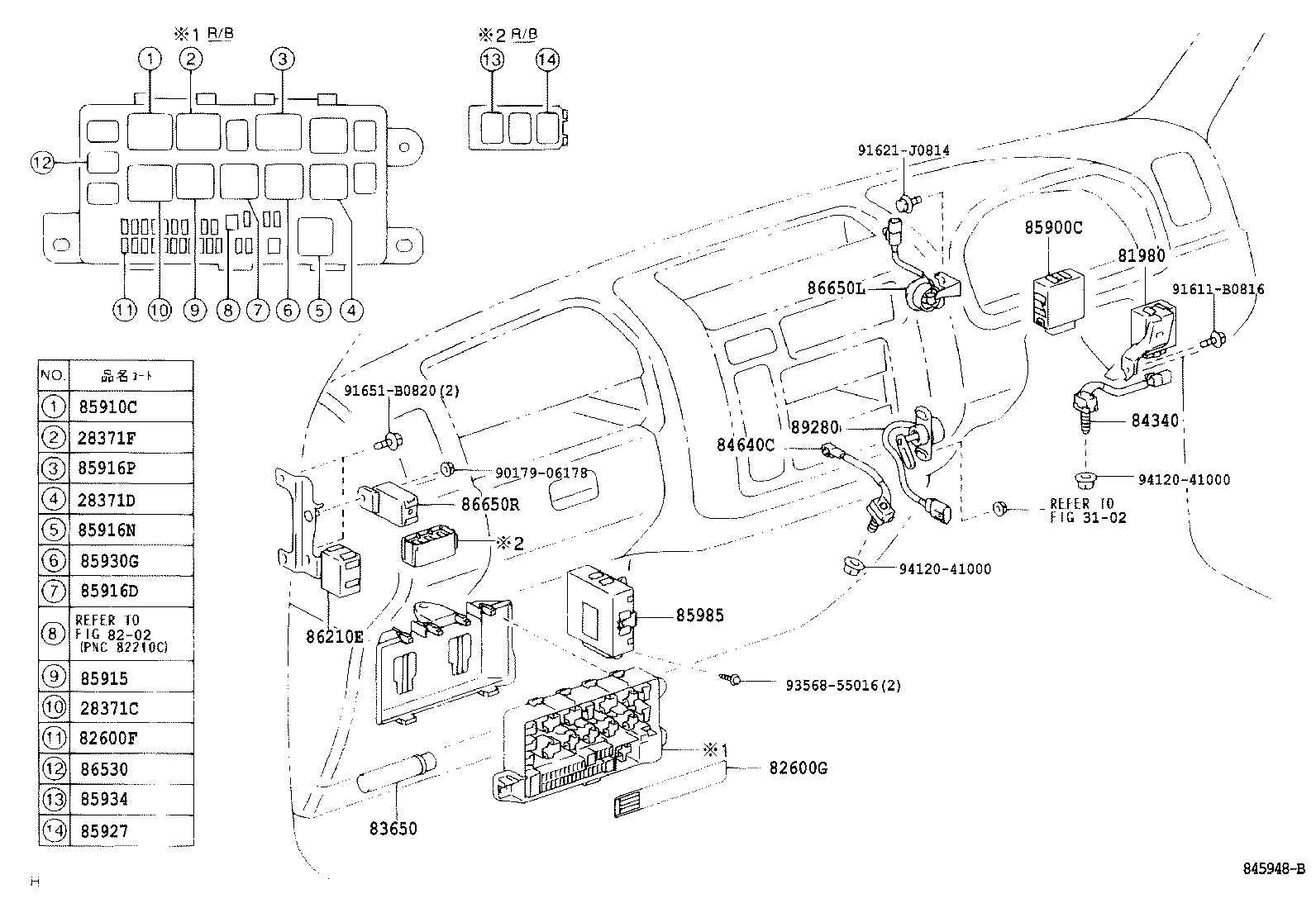

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ ILLUST NO. 5 OF10(0310-0406)XZU304,305,344

DYNA TOYOACE | SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 28371D - RELAY, IGNITION, NO.3 28371F - RELAY, IGNITION, NO.5 ** Refer Fig 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84640C - SWITCH ASSY, EXHAUST RETARDER 85900C - RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK) 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85915 - RELAY, MAIN 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85930G - RELAY, ACC 85934 - RELAY, MAGNET-CLUTCH 85985 - RELAY, KEY REMINDER 86210E - CONVERTER ASSY, VOLTAGE 86530 - RELAY ASSY, HORN 86650L - BUZZER ASSY, VACUUM WARNING 86650R - BUZZER ASSY, ES START 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
