TOYOTA DYNA TOYOACE XZU344-TQMQW3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

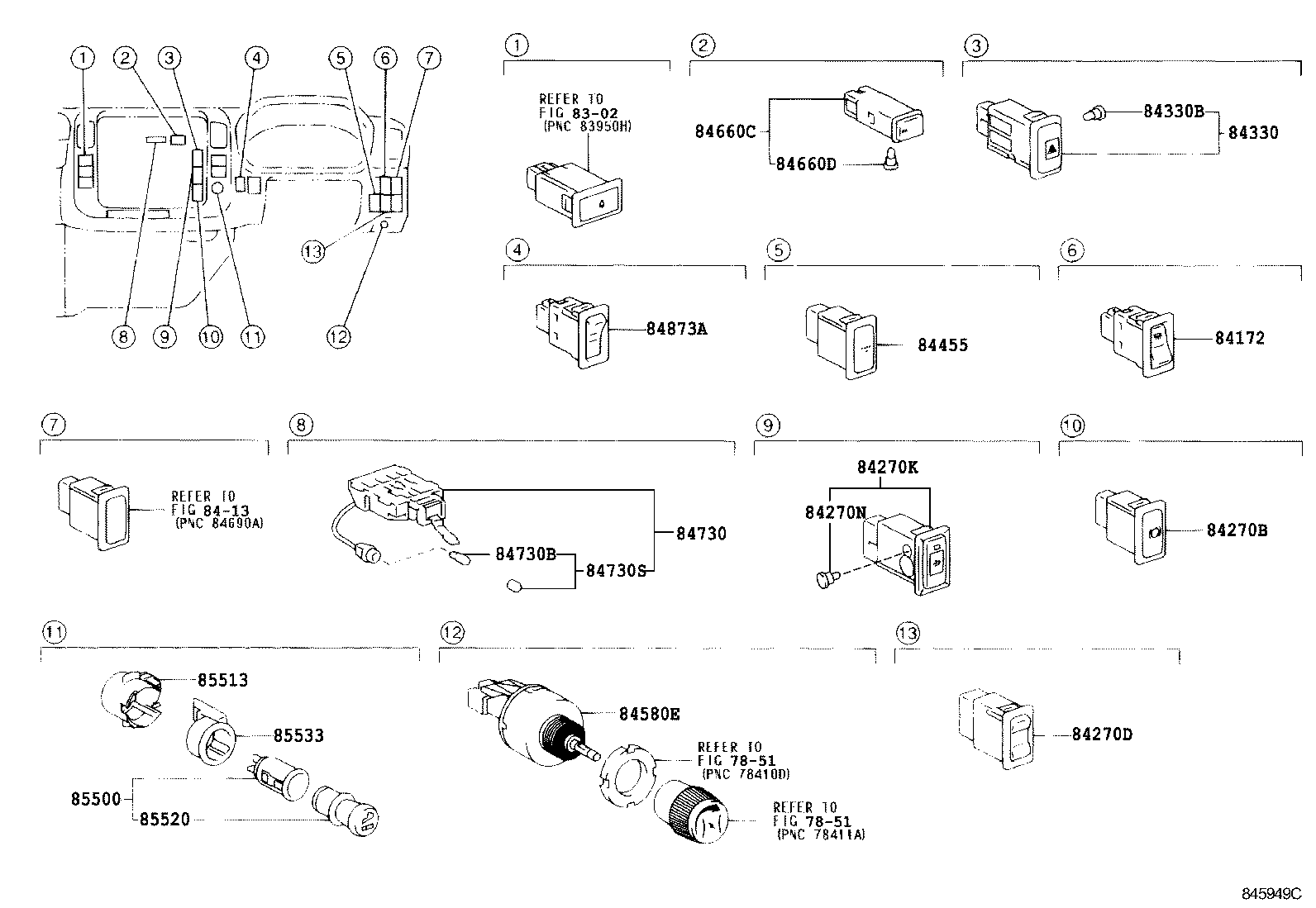

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ ILLUST NO. 6 OF10(0310-0406)XZU304,305,344

DYNA TOYOACE | SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84172 - SWITCH, ROOM LAMP 84270B - SWITCH ASSY, BRAKE LOCK 84270D - SWITCH ASSY, ES START TIMING 84270K - SWITCH ASSY, DPR 84270N - BULB, DPR SWICH ASSY 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL 84330B - BULB, HAZARD WARNING SIGNAL SWITCH 84455 - SWITCH, WARM UP 84580E - SWITCH ASSY, THROTTLE POSITION 84660C - SWITCH, COOLER 84660D - BULB(FOR COOLER SWITCH) 84730 - SWITCH ASSY, HEATER BLOWER 84730B - BULB, HEATER BLOWER SWITCH 84730S - BULB, HEATER BLOWER SWITCH 84873A - SWITCH, RETRACTABLE OUTER MIRROR 85500 - LIGHTER ASSY, CIGARETTE 85513 - COVER, CIGARETTE LIGHTER 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85533 - LENS, CIGARETTE LIGHTER INDICATOR
