TOYOTA IQ NGJ10-BGFNG / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

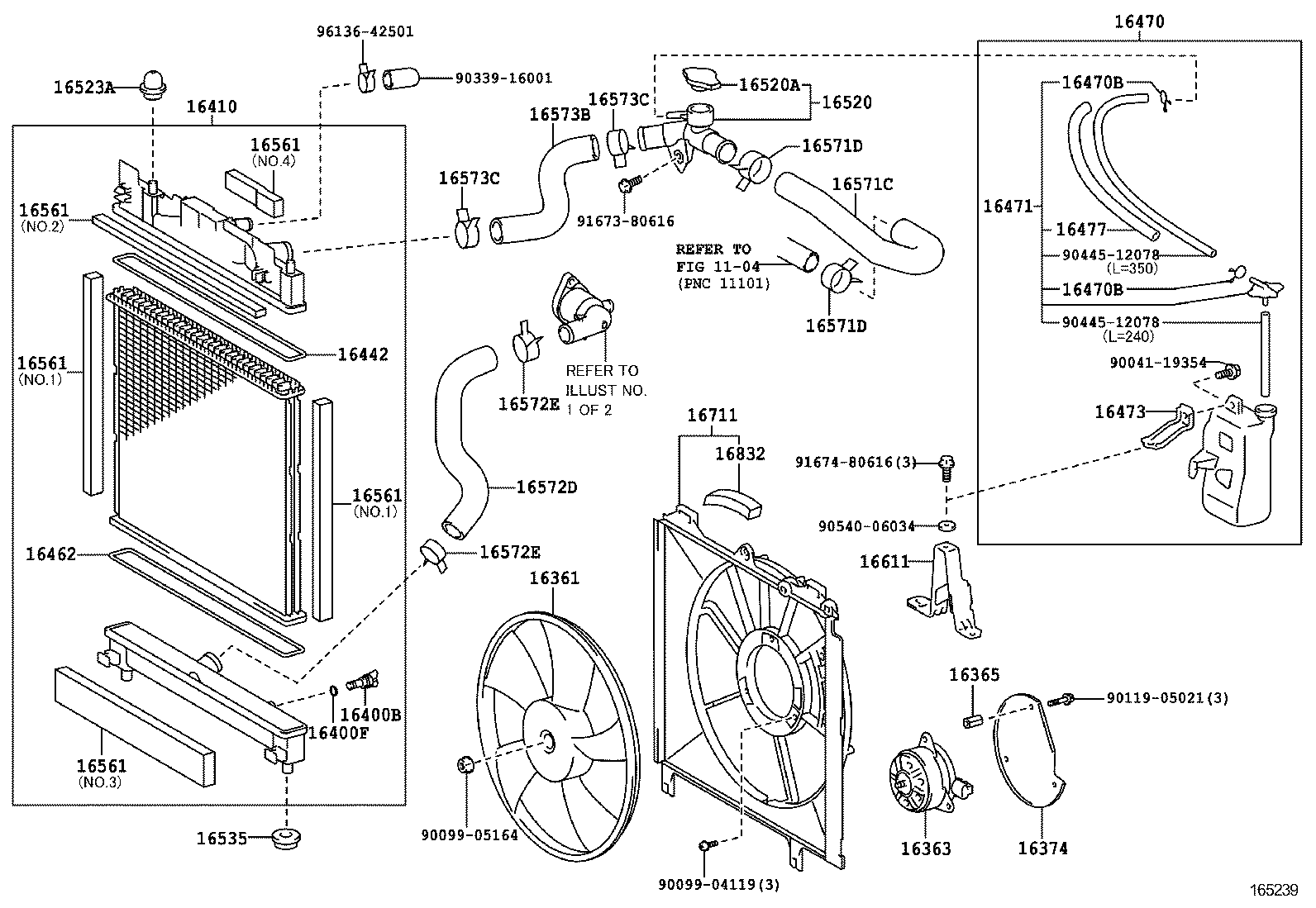

RADIATOR WATER OUTLET

GAZOO RACING ILLUST NO. 1 OF 2(1208-1209)1NRFE..6F

IQ | RADIATOR WATER OUTLET ** Refer Fig 16361 - FAN 16363 - MOTOR, COOLING FAN 16365 - SPACER, FAN 16374 - INSULATOR, COOLING FAN MOTOR 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16410 - RADIATOR ASSY, W/O CAP 16442 - RING, O(FOR RADIATOR UPPER TANK) 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) 16477 - PIPE(FOR RADIATOR RESERVE TANK) 16520 - FILLER ASSY, WATER 16520A - CAP SUB-ASSY, WATER FILLER 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16611 - BRACKET, RADIATOR RESERVE TANK 16711 - SHROUD, FAN 16832 - SEAL, FAN SHROUD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
