TOYOTA IQ NGJ10-BGFNG / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

GAZOO RACING ILLUST NO. 2 OF 2(1208-1209)1NRFE..6F

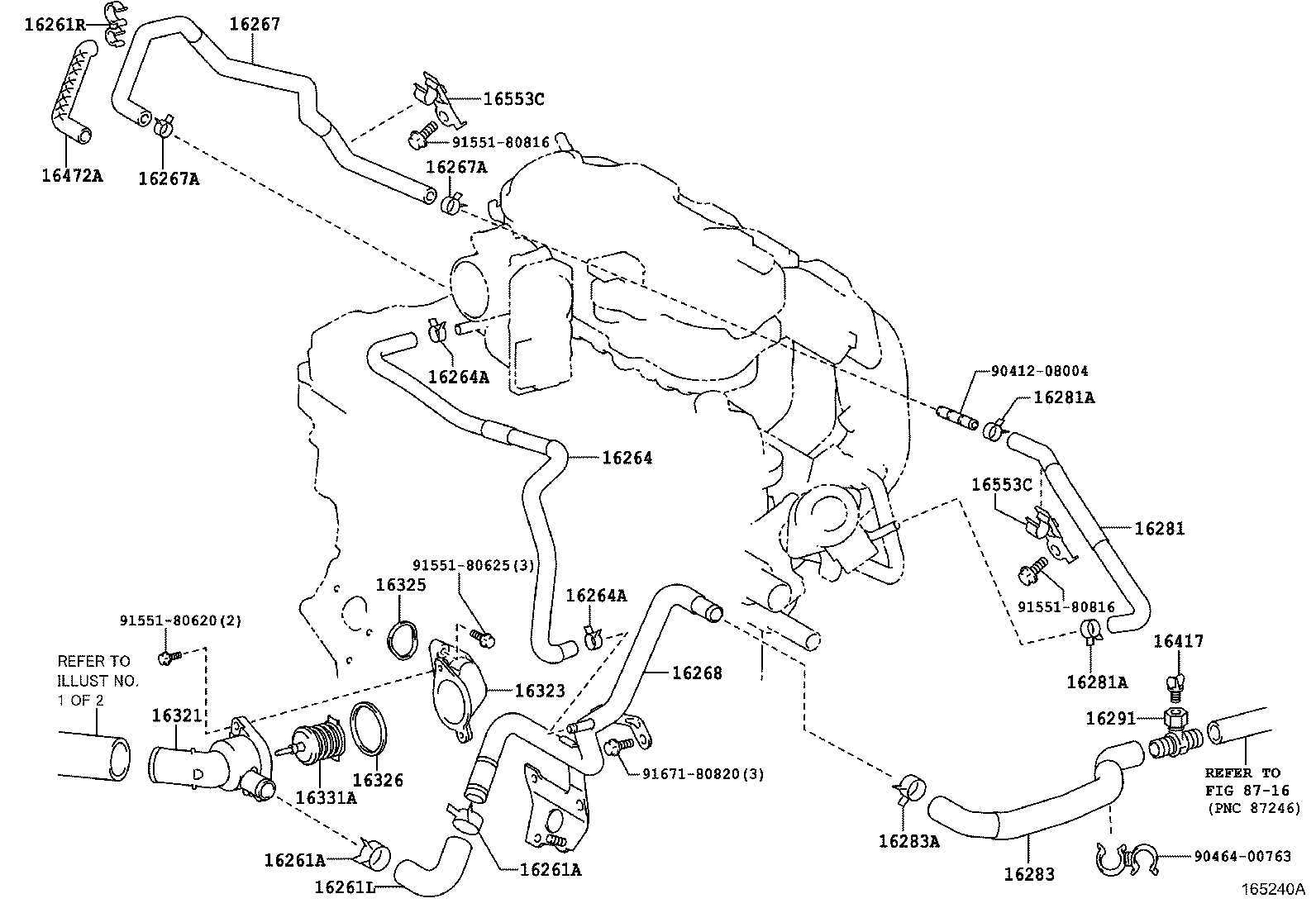

IQ | RADIATOR WATER OUTLET 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261L - HOSE, WATER BY-PASS 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16291 - JOINT, WATER HOSE 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16331A - THERMOSTAT 16417 - COCK 16472A - PROTECTOR, HOSE 16553C - CLAMP, HOSE 16553C - CLAMP, HOSE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
