TOYOTA HARRIER ZSU60W-ANXGP / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

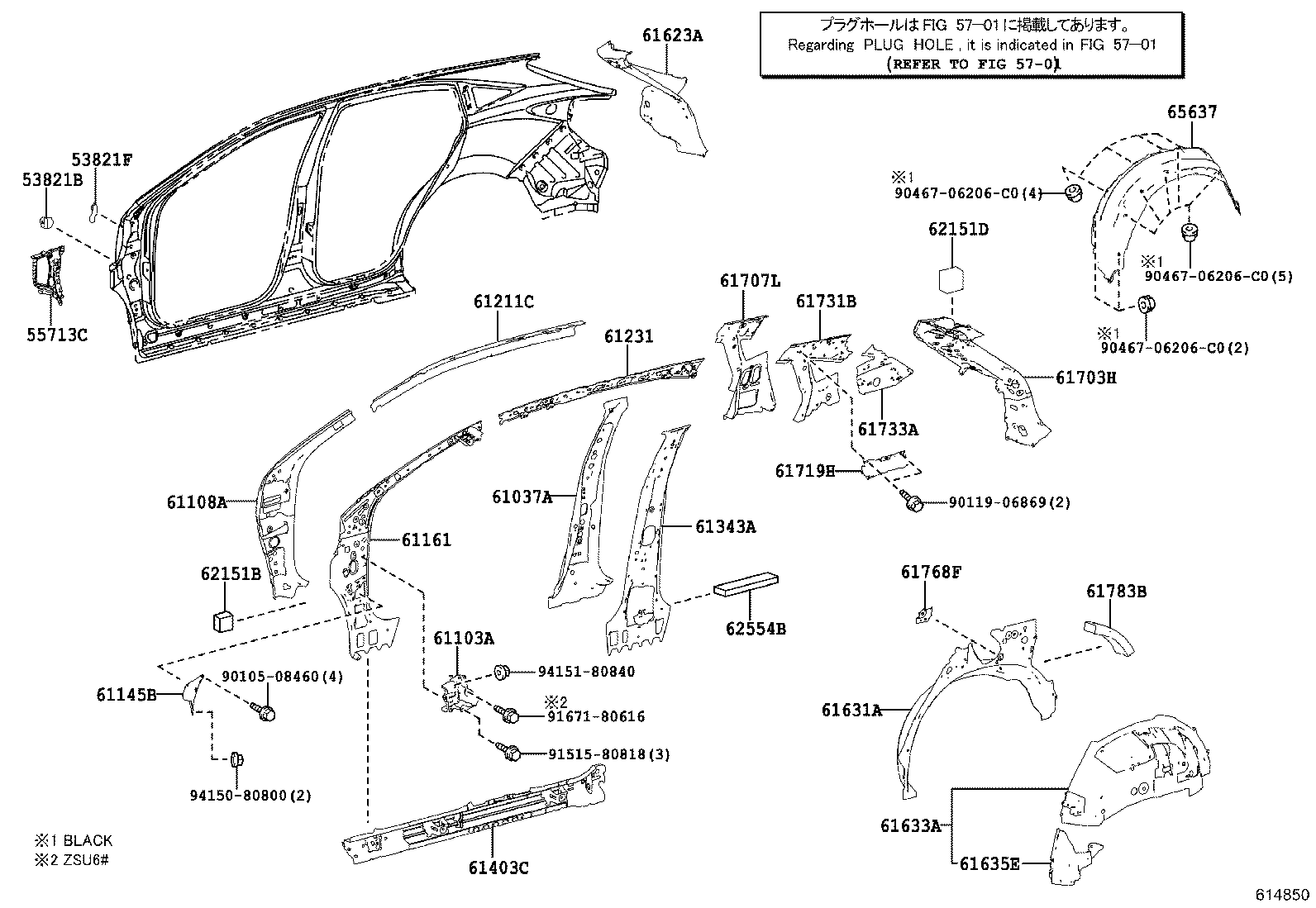

SIDE MEMBER

ｲﾝﾅﾊﾟﾈﾙ,RH ILLUST NO. 2 OF 2(1312- )

HARRIER | SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH 53821F - BRACKET, FRONT FENDER, REAR NO.2 RH 55713C - PANEL, COWL TOP SIDE, RH ** Refer Fig 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH 61161 - PILLAR, FRONT BODY, UPPER INNER RH 61211C - RAIL, ROOF SIDE, RH 61231 - RAIL, ROOF SIDE, INNER RH 61343A - PILLAR, CENTER BODY, INNER RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61623A - EXTENSION, QUARTER PANEL, OUTER RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH 61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH 61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH 61731B - PANEL, ROOF SIDE, INNER RH 61733A - PANEL, ROOF SIDE, INNER FRONT RH 61768F - REINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 62151B - PAD, COWL SIDE SILENCER 62151D - PAD, COWL SIDE SILENCER 62554B - PAD, PILLAR, NO.4 65637 - LINER, REAR WHEEL HOUSE, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
