TOYOTA HARRIER ZSU60W-ANXGP / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

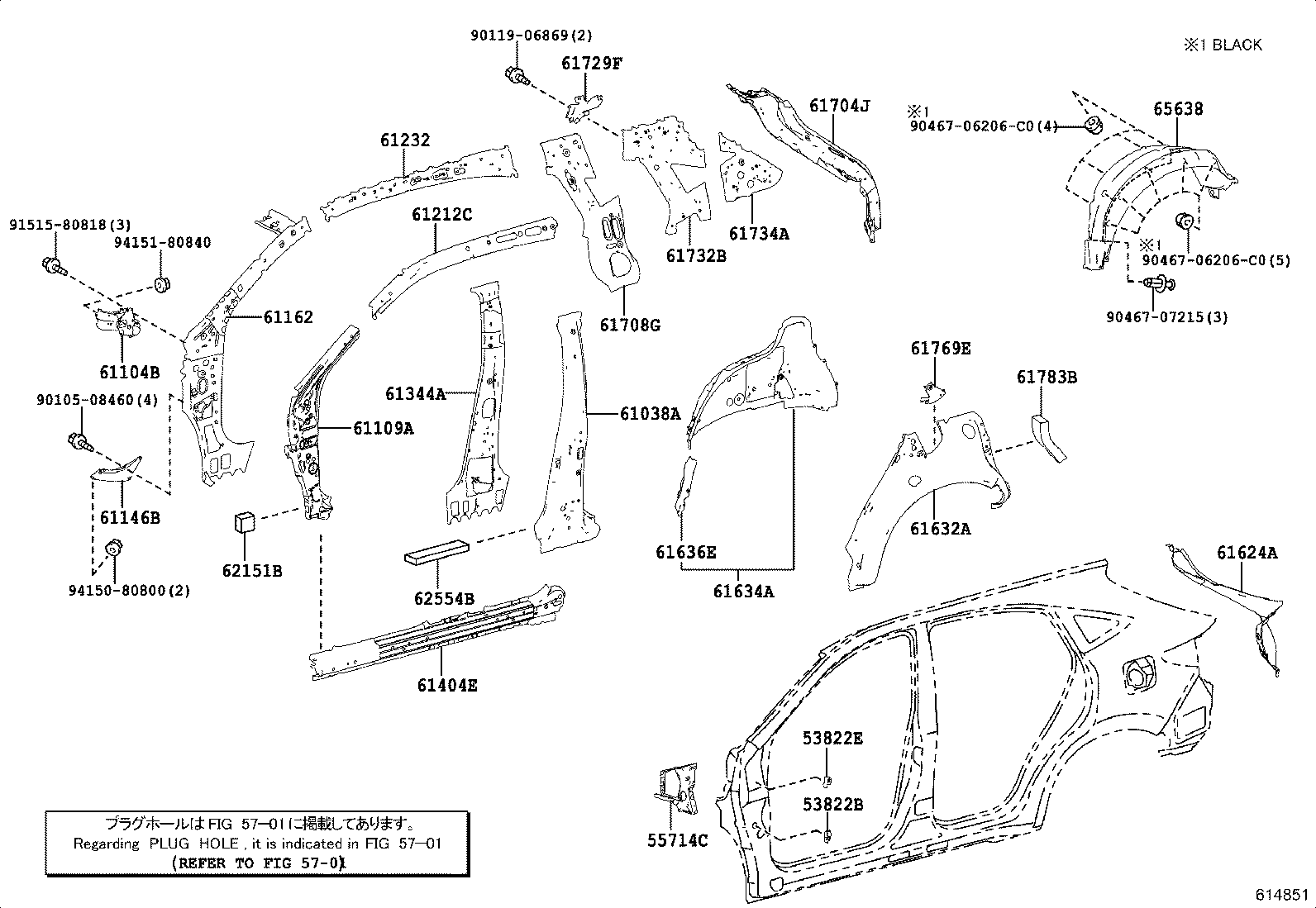

SIDE MEMBER

ｲﾝﾅﾊﾟﾈﾙ,LH ILLUST NO. 2 OF 2(1312- )

HARRIER | SIDE MEMBER 53822B - BRACKET, FRONT FENDER, REAR LH 53822E - BRACKET, FRONT FENDER, REAR NO.2 LH 55714C - PANEL, COWL TOP SIDE, LH ** Refer Fig 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH 61162 - PILLAR, FRONT BODY, UPPER INNER LH 61212C - RAIL, ROOF SIDE, LH 61232 - RAIL, ROOF SIDE, INNER LH 61344A - PILLAR, CENTER BODY, INNER LH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61624A - EXTENSION, QUARTER PANEL, OUTER LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH 61708G - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH 61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH 61732B - PANEL, ROOF SIDE, INNER LH 61734A - PANEL, ROOF SIDE, INNER FRONT LH 61769E - REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 62151B - PAD, COWL SIDE SILENCER 62554B - PAD, PILLAR, NO.4 65638 - LINER, REAR WHEEL HOUSE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
