TOYOTA NOAH VOXY ZRR80G-ARXEP5 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

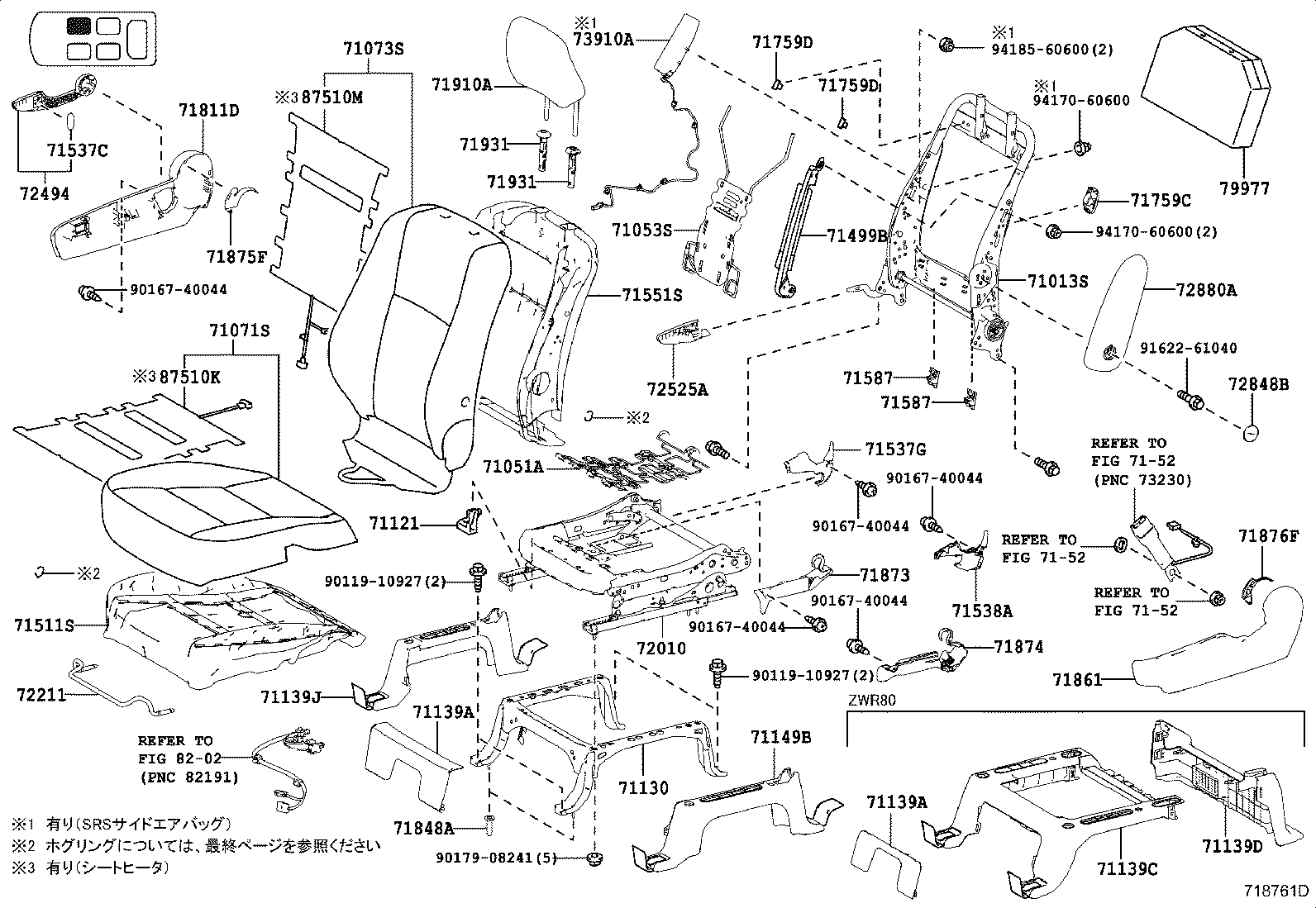

SEAT SEAT TRACK

ウンテンセキ (1401- )

 NOAH VOXY |  SEAT SEAT TRACK 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71121 - BRACKET, FRONT SEAT CUSHION, RH 71130 - LEG ASSY, FRONT SEAT, RH 71139A - COVER, FRONT SEAT LEG, NO.1 71139A - COVER, FRONT SEAT LEG, NO.1 71139C - COVER, FRONT SEAT LEG, RH 71139D - COVER, FRONT SEAT LEG NO.1 71139J - COVER, FRONT SEAT LEG, RH(FOR RH SEAT) 71149B - COVER, FRONT SEAT LEG, LH (FOR RH SEAT) 71499B - DAMPER, SEAT CUSHION SPRING 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71759C - HOOK, FRONT SEAT BACK, NO.1 71759D - HOOK, FRONT SEAT BACK, NO.2 71759D - HOOK, FRONT SEAT BACK, NO.2 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72211 - HANDLE, SEAT TRACK ADJUSTING 72494 - HANDLE, VERTICAL ADJUSTING, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72848B - CAP, SEAT ARMREST, NO.1 72880A - ARMREST ASSY, FRONT SEAT, INNER RH 73910A - AIR BAG ASSY, FRONT SEAT, RH 79977 - FELT, SEAT BACK ** Refer Fig 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
