TOYOTA NOAH VOXY ZRR80G-ARXEP5 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

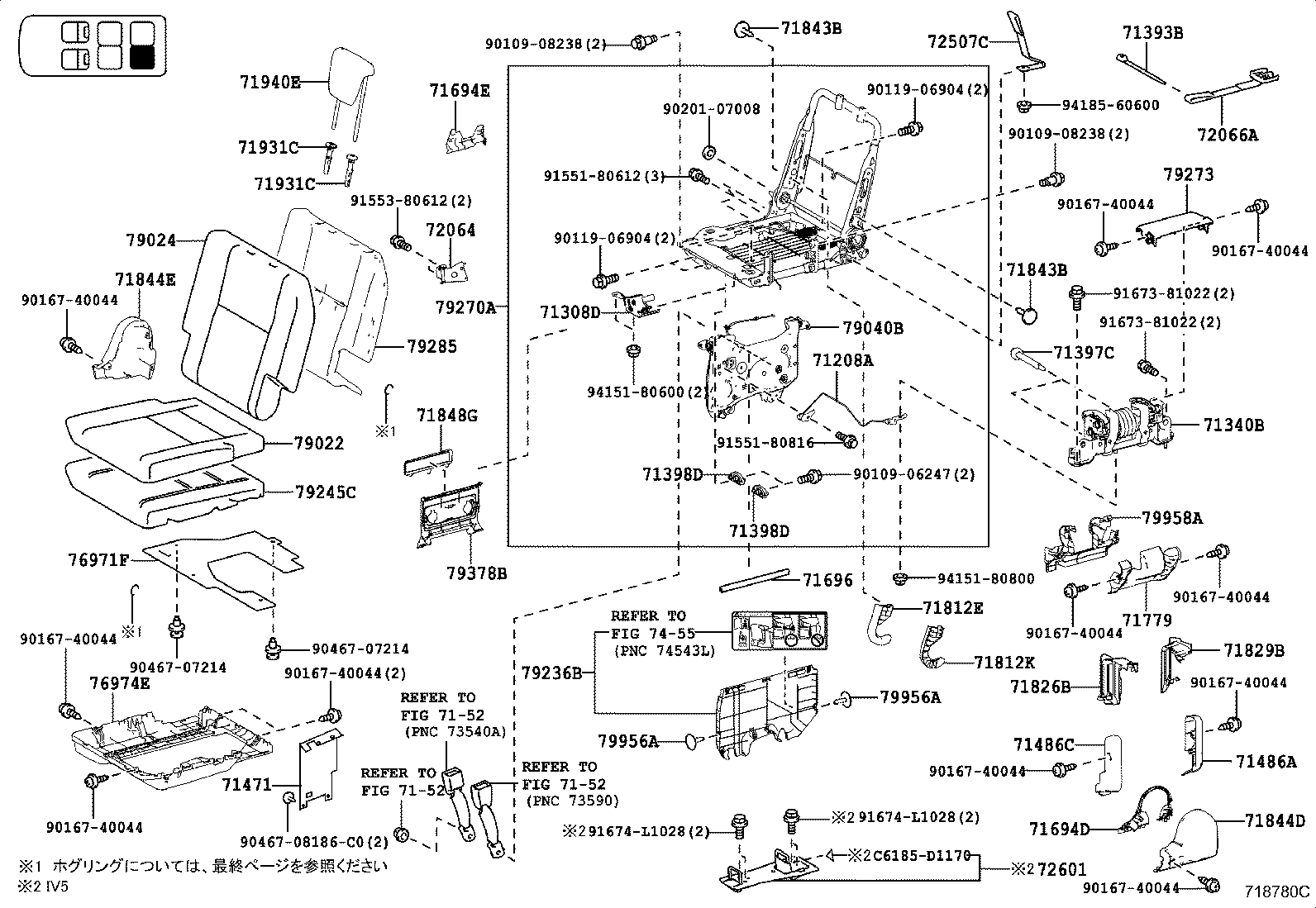

SEAT SEAT TRACK

リヤNO.2シート(LH) (1401- )

 NOAH VOXY |  SEAT SEAT TRACK 71208A - WIRE SUB-ASSY, REAR SEAT CUSHION 71308D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH 71340B - HINGE ASSY, REAR NO.2 SEAT, LH 71393B - BAND, REAR SEAT CUSHION, LH 71397C - STOPPER, REAR SEAT 71398D - GUIDE, REAR SEAT CUSHION SUPPORT 71398D - GUIDE, REAR SEAT CUSHION SUPPORT 71471 - COVER, REAR SEAT HINGE 71486A - COVER, REAR SEAT HINGE, NO.2 LH 71486C - COVER, REAR SEAT HINGE, LH ** Refer Fig ** Refer Fig ** Refer Fig 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH 71696 - PROTECTOR, REAR SEAT, NO.2 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71812E - COVER, RECLINING ADJUSTER, LH 71812K - COVER, RECLINING ADJUSTER, LH 71826B - MOULDING, REAR SEAT CUSHION, LH 71829B - MOULDING, REAR SEAT CUSHION, REAR LH 71843B - CLIP, REAR SEAT RECLINING COVER 71843B - CLIP, REAR SEAT RECLINING COVER 71844D - COVER, REAR SEAT RECLINING, LH (FOR LH SEAT) 71844E - COVER, REAR SEAT RECLINING, RH (FOR LH SEAT) 71848G - CAP, SEAT ADJUSTER COVER, NO.2 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71940E - HEADREST ASSY, NO.2 SEAT 72064 - HOOK SUB-ASSY, REAR SEAT, LH 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK ** Refer Fig 76971F - COVER, REAR UNDER 76974E - COVER, REAR UNDER SIDE, LH 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH 79040B - LEG ASSY, REAR NO.2 SEAT, LH 79236B - COVER, NO.2 SEAT LEG, LH 79245C - PAD, NO.2 SEAT CUSHION, LH 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH 79273 - COVER, NO.2 SEAT HINGE 79285 - PAD, NO.2 SEAT BACK, LH 79378B - COVER, NO.3 SEAT CUSHION HINGE, LH 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) 79958A - COVER, REAR SEAT REAR BRACKET, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
