TOYOTA NOAH VOXY ZRR80G-ARXEP5 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

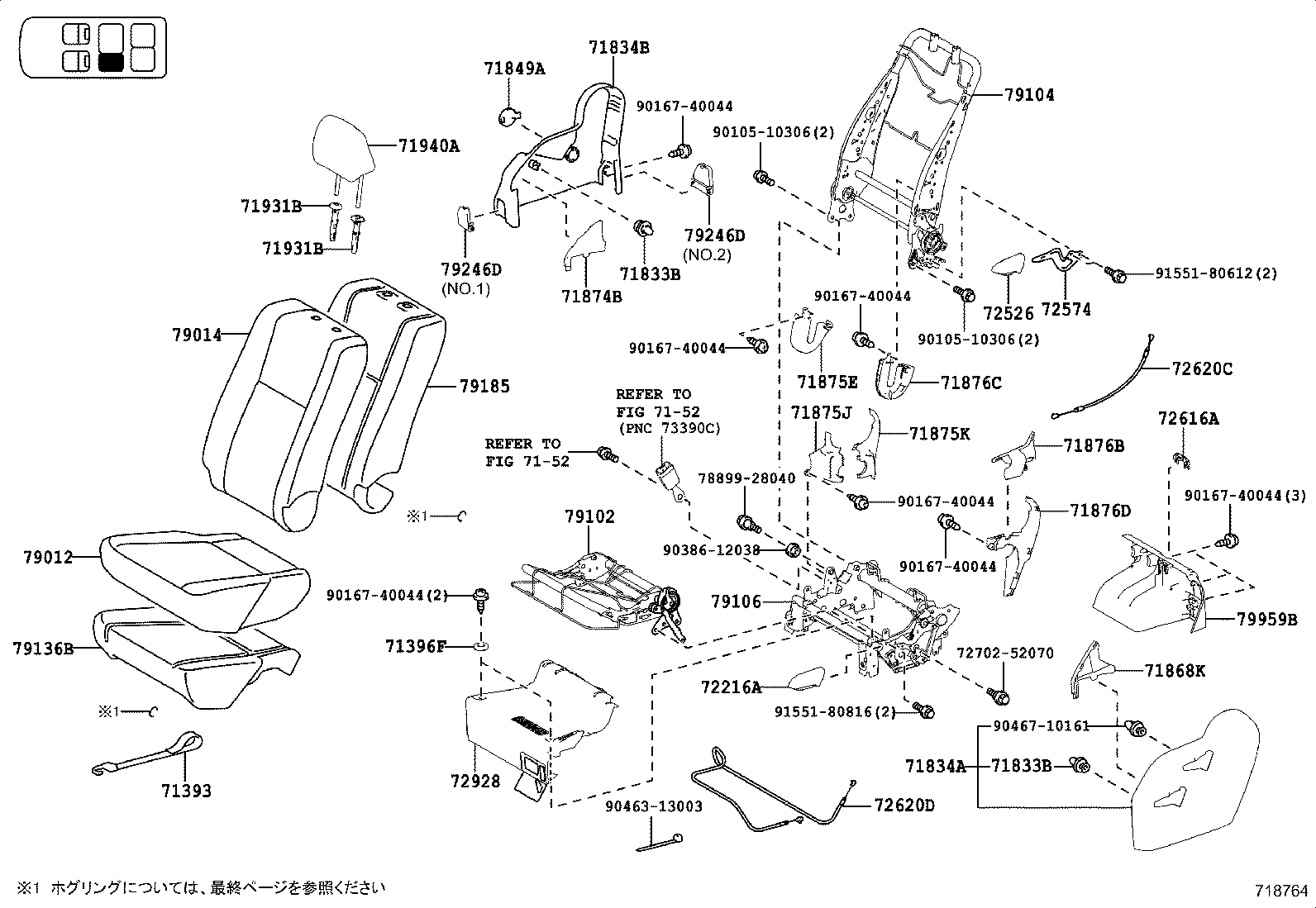

SEAT SEAT TRACK

ﾘﾔNO.1ｼｰﾄ(LH) (1401- )08S

NOAH VOXY | SEAT SEAT TRACK 71393 - BAND, REAR SEAT CUSHION 71396F - CUSHION, NO.1 SEAT SUPPORT, REAR ** Refer Fig ** Refer Fig 71833B - CLIP (FOR REAR SEAT RECLINING COVER) 71833B - CLIP (FOR REAR SEAT RECLINING COVER) 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71834B - COVER, REAR SEAT RECLINING, NO.2 LH 71849A - CAP, SEAT ADJUSTER COVER, LH 71868K - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT) 71874B - SHIELD, REAR SEAT CUSHION, LOWER LH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71875J - COVER, RECLINING ADJUSTER INSIDE, RH 71875K - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72216A - LEVER, SEAT TRACK HANDLE CONTROL, LH 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72574 - LEVER, RECLINING CONTROL, LH 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72620D - CABLE ASSY, REAR NO.1 SEAT LOCK ** Std Part 72928 - COVER, REAR SEAT CUSHION UNDER, LH ** Std Part 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH 79106 - LEG SUB ASSY, NO.1 SEAT, LH 79136B - PAD, NO.1 SEAT CUSHION, LH 79185 - PAD, NO.1 SEAT BACK, LH 79246D - COVER, REAR SEAT LEG, RH (FOR LH SEAT) 79246D - COVER, REAR SEAT LEG, RH (FOR LH SEAT) 79959B - COVER, REAR SEAT LEG, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
