TOYOTA HIACE TRH213R-KDPNK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

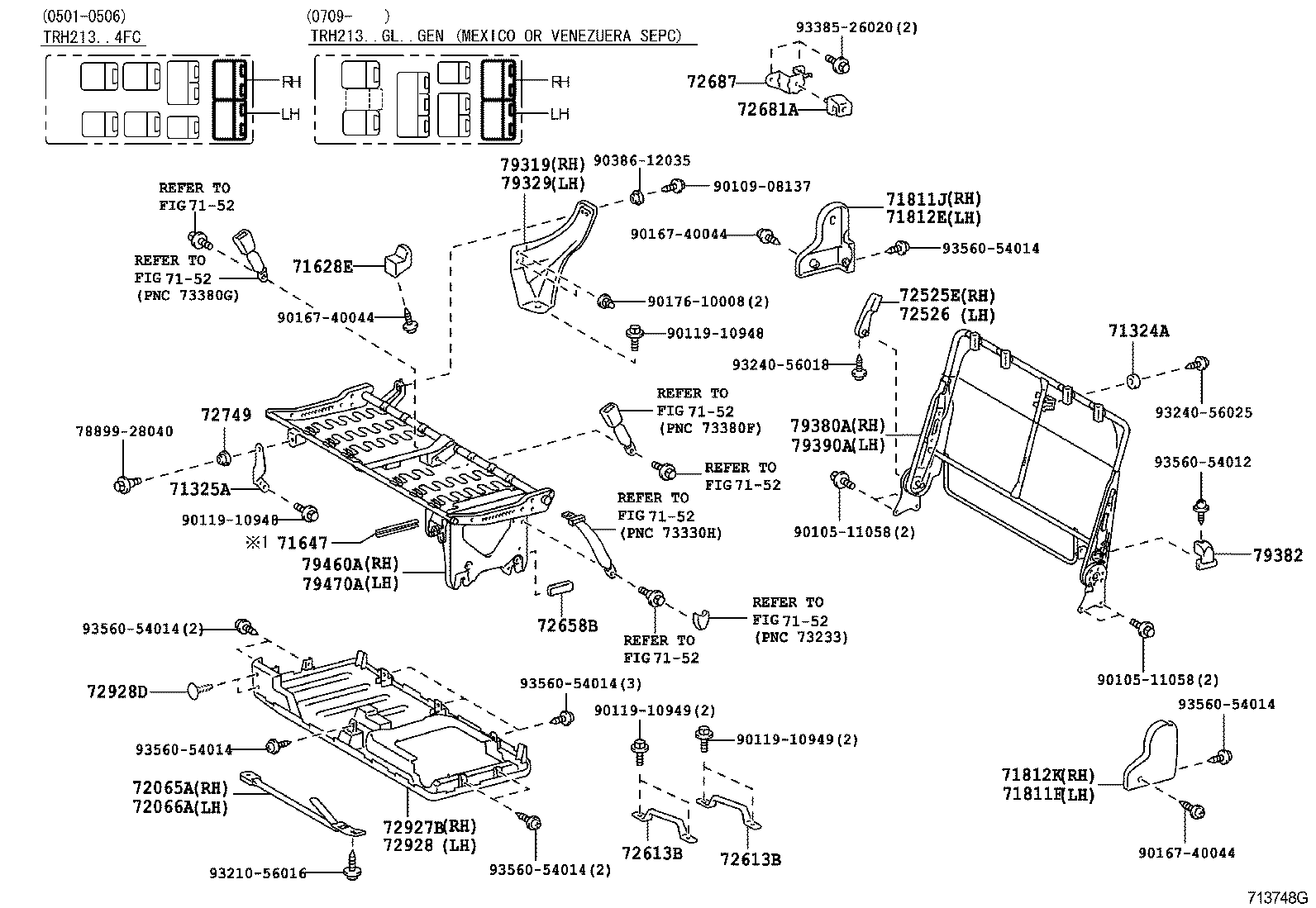

SEAT SEAT TRACK

RR(SPACE UP SEAT) ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC ; (0709- )TRH213..GL..

HIACE | SEAT SEAT TRACK 71324A - CUSHION, REAR SEAT 71325A - HINGE, REAR SEAT CUSHION LEG ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71628E - SPACER, REAR SEAT CUSHION 71647 - PROTECTOR, REAR SEAT CUSHION EDGE 71811F - COVER, RECLINING ADJUSTER, RH 71811J - COVER, RECLINING ADJUSTER, RH 71812E - COVER, RECLINING ADJUSTER, LH 71812K - COVER, RECLINING ADJUSTER, LH 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72613B - STRIKER, REAR SEAT LOCK 72613B - STRIKER, REAR SEAT LOCK 72658B - KNOB, REAR SEAT LOCK HANDLE 72681A - HOOK, REAR SEAT 72687 - BRACKET, REAR SEAT HOOK 72749 - SPACER, REAR SEAT RECLINING 72927B - COVER, REAR SEAT CUSHION UNDER 72928 - COVER, REAR SEAT CUSHION UNDER, LH 72928D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) ** Std Part 79319 - BRACKET, NO.3 SEAT LEG, RR RH 79329 - BRACKET, NO.3 SEAT LEG, RR LH 79380A - SPRING ASSY, NO.3 SEAT BACK, RH 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH 79390A - SPRING ASSY, NO.3 SEAT BACK, LH 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH 79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
