TOYOTA HIACE TRH213R-KDPNK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

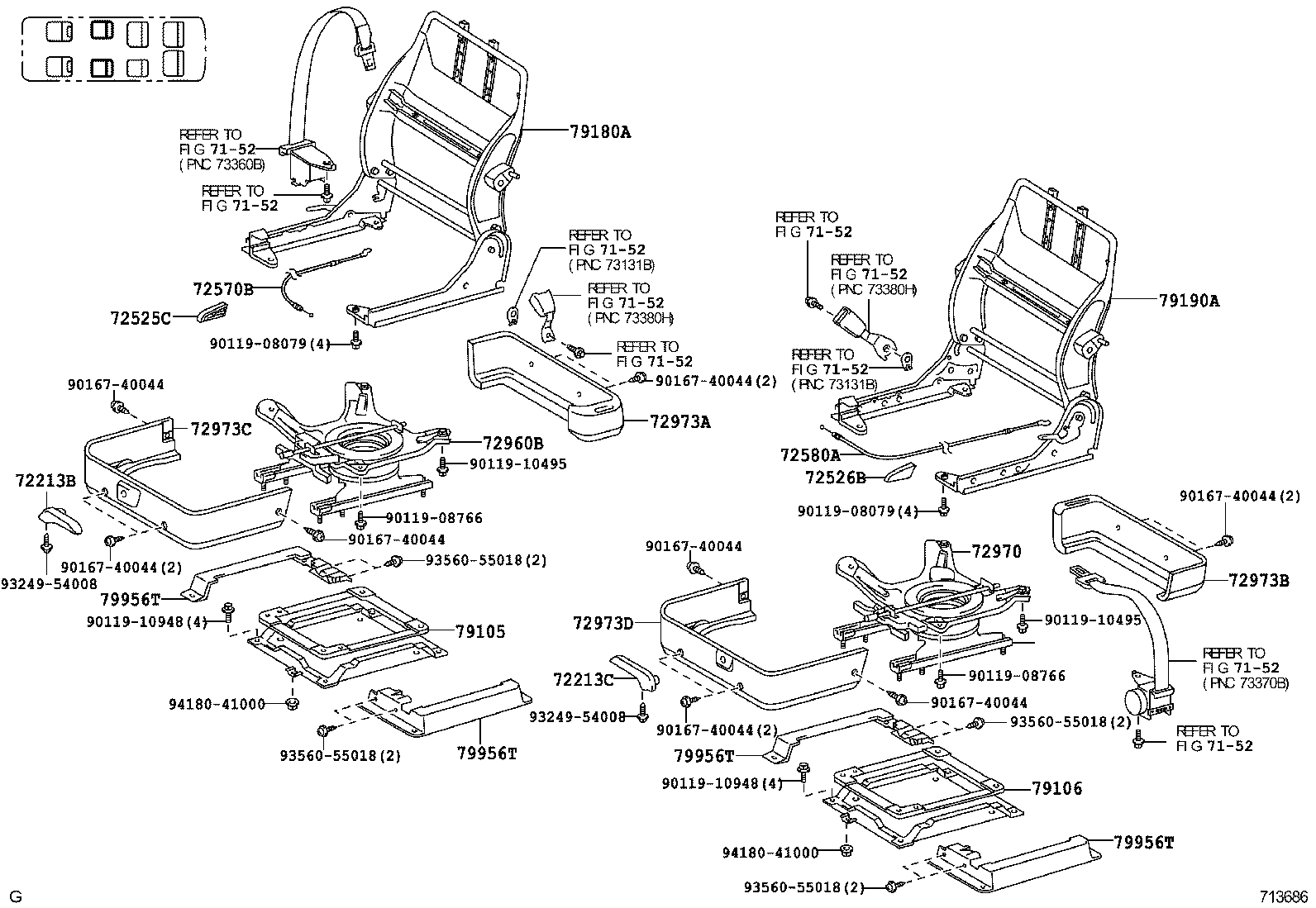

SEAT SEAT TRACK

RHD RR(CAPTAIN SEAT) ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC

HIACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72570B - CABLE ASSY, RECLINING ADJUSTING, RH 72580A - CABLE ASSY, RECLINING ADJUSTING, LH 72960B - TABLE ASSY, REAR SEAT TURN, RH 72970 - TABLE ASSY, REAR SEAT TURN, LH 72973A - COVER, REAR SEAT TURN TABLE 72973B - COVER, REAR SEAT TURN TABLE, NO.2 72973C - COVER, FRONT SEAT TURN TABLE,NO.1 72973D - COVER, FRONT SEAT TURN TABLE, NO.2 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79106 - LEG SUB ASSY, NO.1 SEAT, LH 79180A - SPRING ASSY, NO.1 SEAT BACK, RH 79190A - SPRING ASSY, NO.1 SEAT BACK, LH 79956T - COVER, REAR SEAT LEG SIDE 79956T - COVER, REAR SEAT LEG SIDE 79956T - COVER, REAR SEAT LEG SIDE 79956T - COVER, REAR SEAT LEG SIDE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
