TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

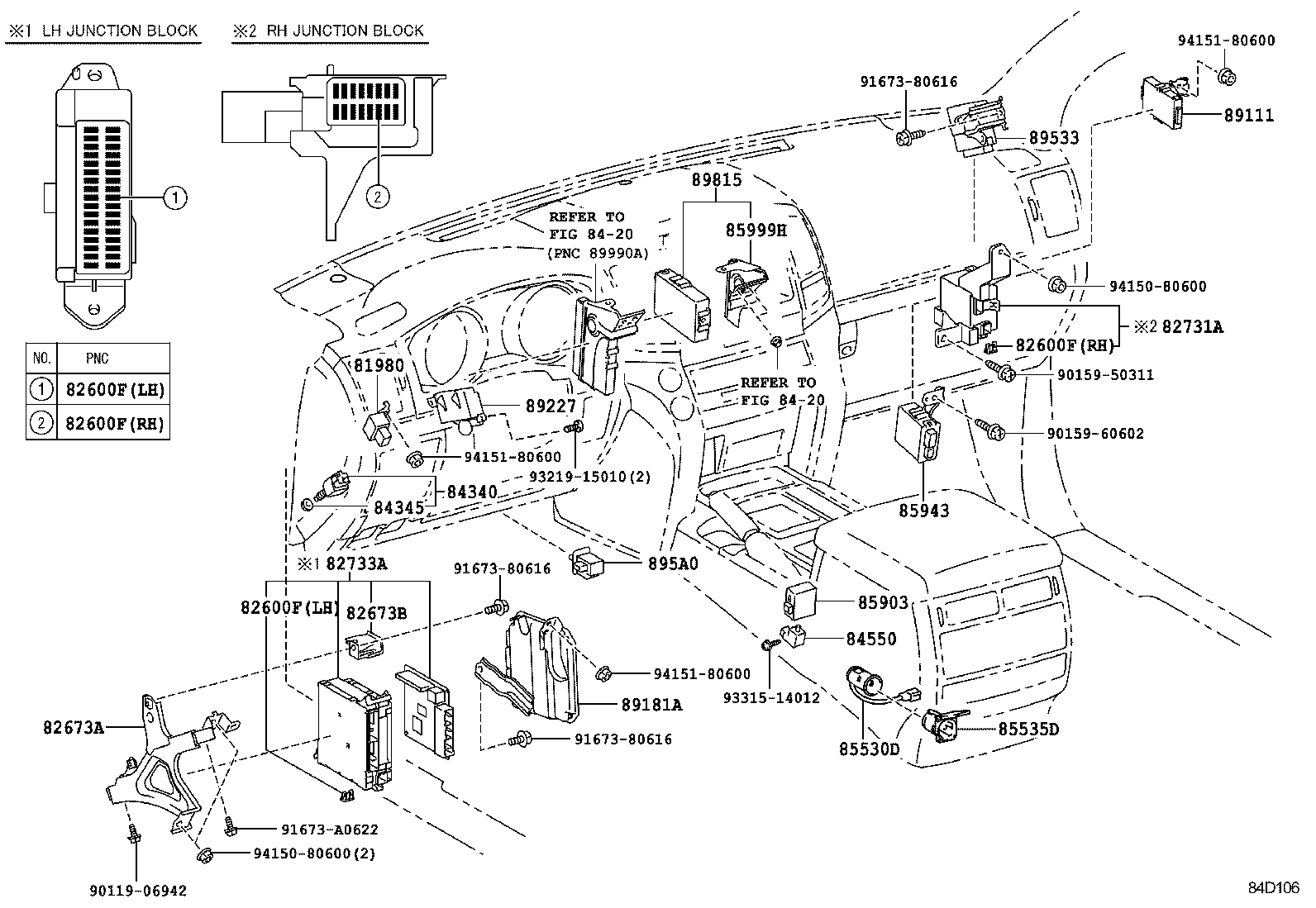

SWITCH RELAY COMPUTER

COWL ILLUST NO. 4 OF 9(1201- )

LAND CRUISER 200 | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82731A - BLOCK, COWL SIDE JUNCTION, RH 82733A - BLOCK, COWL SIDE JUNCTION, LH ** Refer Fig ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 85530D - SOCKET ASSY, POWER OUTLET, NO.2 85535D - COVER, POWER OUTLET SOCKET, CENTER 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL 85943 - COMPUTER, WINDSHIELD WIPER 85999H - BRACKET, RELAY 89111 - COMPUTER, NETWORK GATEWAY 89181A - COMPUTER, STEERING CONTROL 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL 895A0 - RELAY ASSY, STOP LAMP CONTROL 89815 - COMPUTER, SEAT BELT CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
