TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

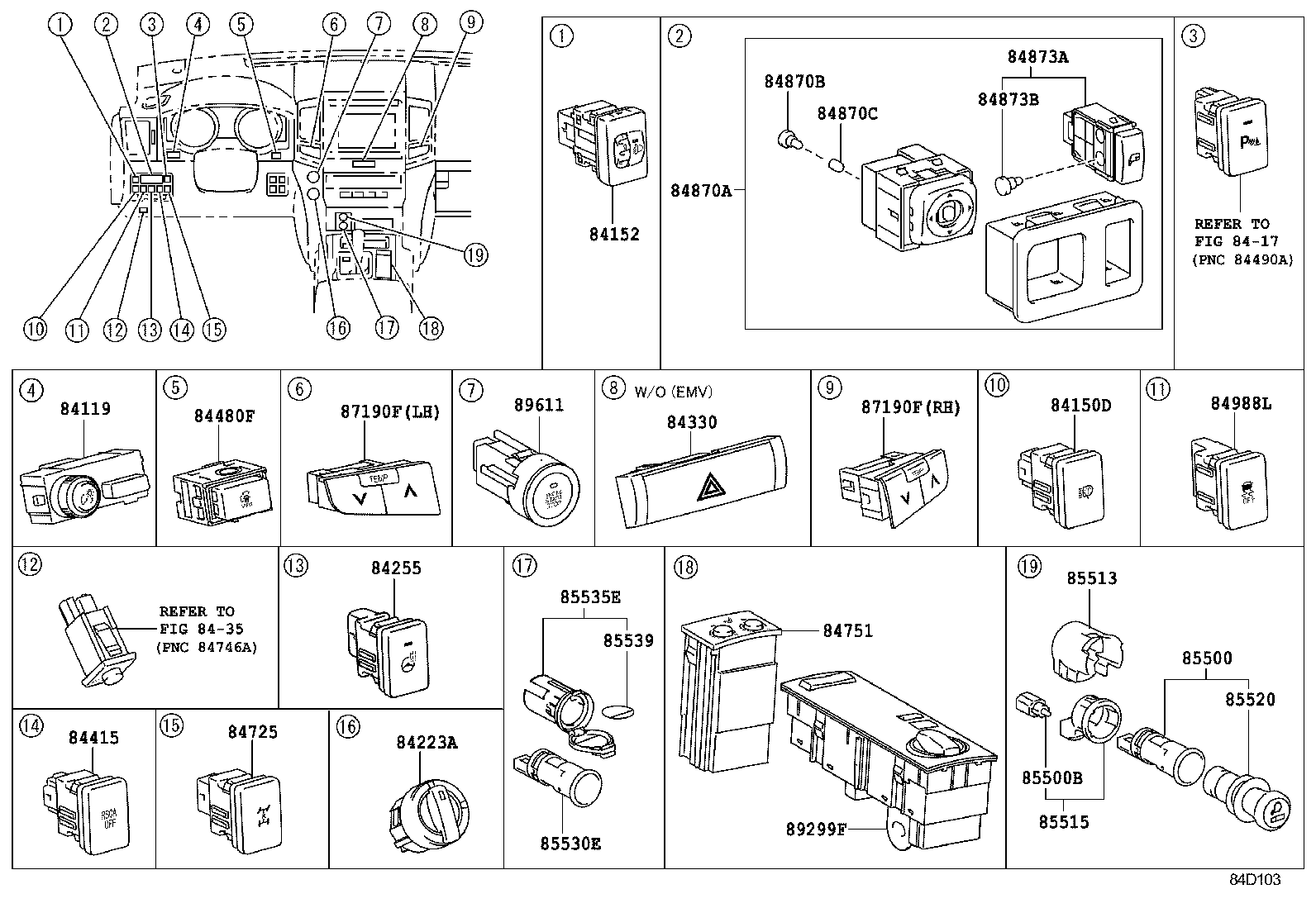

INSTRUMENT PANEL ILLUST NO. 5 OF 9(1201- )

LAND CRUISER 200 | SWITCH RELAY COMPUTER 84119 - RHEOSTAT, LIGHT CONTROL 84150D - SWITCH ASSY, HEADLAMP CLEANER 84152 - SWITCH, HEADLAMP LEVELING ** Refer Fig 84223A - SWITCH, TRANSFER POSITION 84255 - SWITCH, STEERING HEATER 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL ** Refer Fig 84415 - SWITCH, CURTAIN AIRBAG CUTOFF 84480F - SWITCH ASSY, MAIN 84725 - SWITCH, CENTER DIFFERENTIAL LOCK 84751 - SWITCH, SEAT HEATER 84870A - SWITCH ASSY, OUTER MIRROR 84870B - BULB, OUTER MIRROR SWITCH 84870C - CAP, OUTER MIRROR SWITCH BULB 84873A - SWITCH, RETRACTABLE OUTER MIRROR 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH 84988L - SWITCH, VSC OFF 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85513 - COVER, CIGARETTE LIGHTER 85515 - STAY, CIGARETTE LIGHTER BEZEL 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535E - COVER, POWER OUTLET SOCKET, NO.2 85539 - LABEL, POWER OUTLET NOTICE 87190F - SWITCH ASSY, TEMPERATURE CONTROL 87190F - SWITCH ASSY, TEMPERATURE CONTROL 89299F - SWITCH, SUSPENSION CONTROL 89611 - SWITCH, PUSH START
