TOYOTA PRIUS NHW11R-AEEEBQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

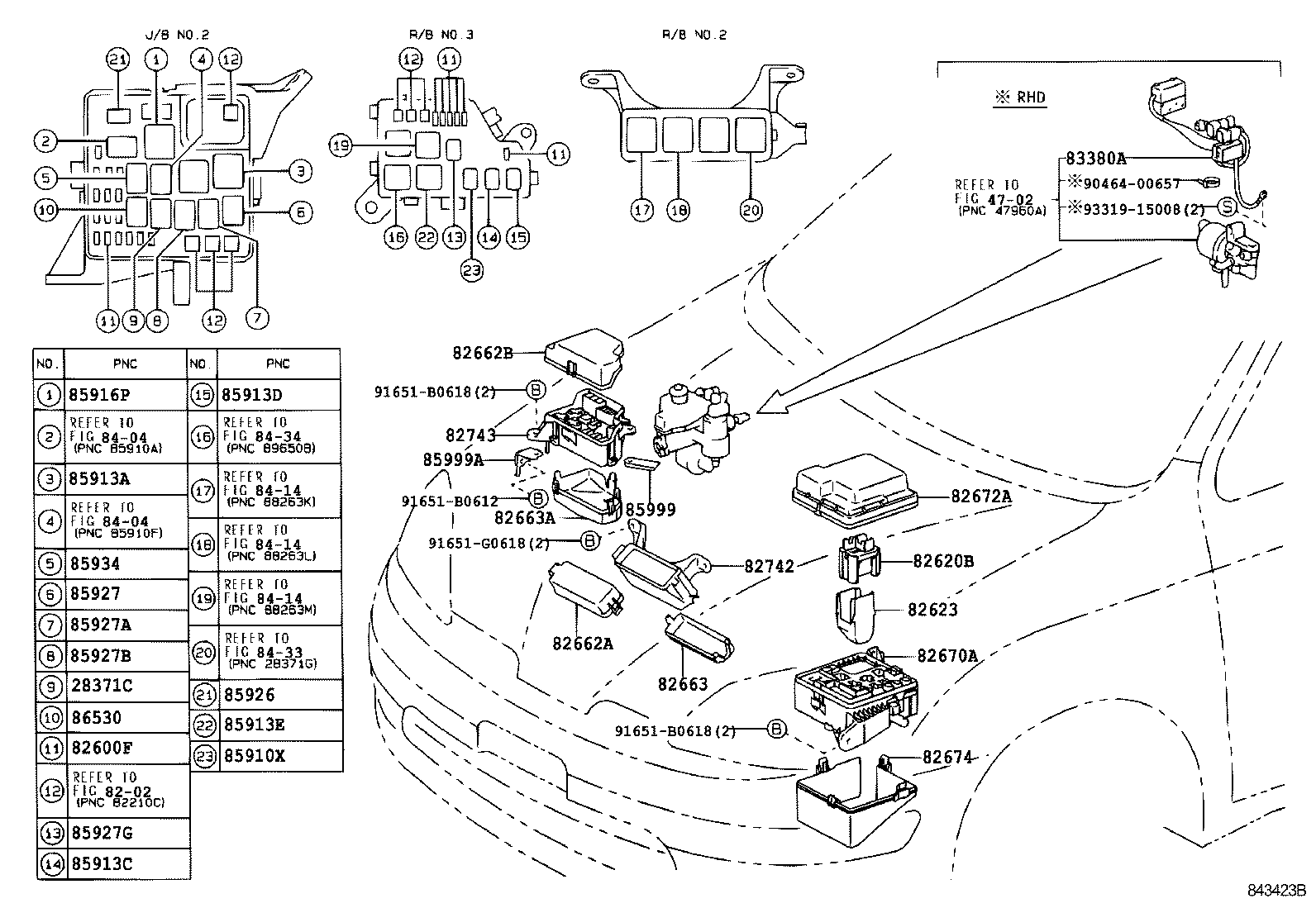

SWITCH RELAY COMPUTER

ENGINE ROOM ILLUST NO. 2 OF 6(0005- )

 PRIUS |  SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82620B - BLOCK ASSY, FUSIBLE LINK 82623 - COVER, FUSIBLE LINK, LOWER 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82670A - BLOCK ASSY, JUNCTION,  NO.1 82672A - COVER, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 83380A - SWITCH ASSY, PRESSURE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910X - RELAY, HEATER MIRROR 85913A - RELAY, HEATER CONTROL 85913C - RELAY, HEATER, NO.1 85913D - RELAY, HEATER, NO.2 85913E - RELAY, HEATER, NO.3 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85927G - RELAY, AIR CONDITIONER WATER PUMP 85934 - RELAY, MAGNET-CLUTCH 85999 - BRACKET, COMBINATION RELAY 85999A - BRACKET, RELAY, NO.2 86530 - RELAY ASSY, HORN  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
