TOYOTA PRIUS NHW11R-AEEEBQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

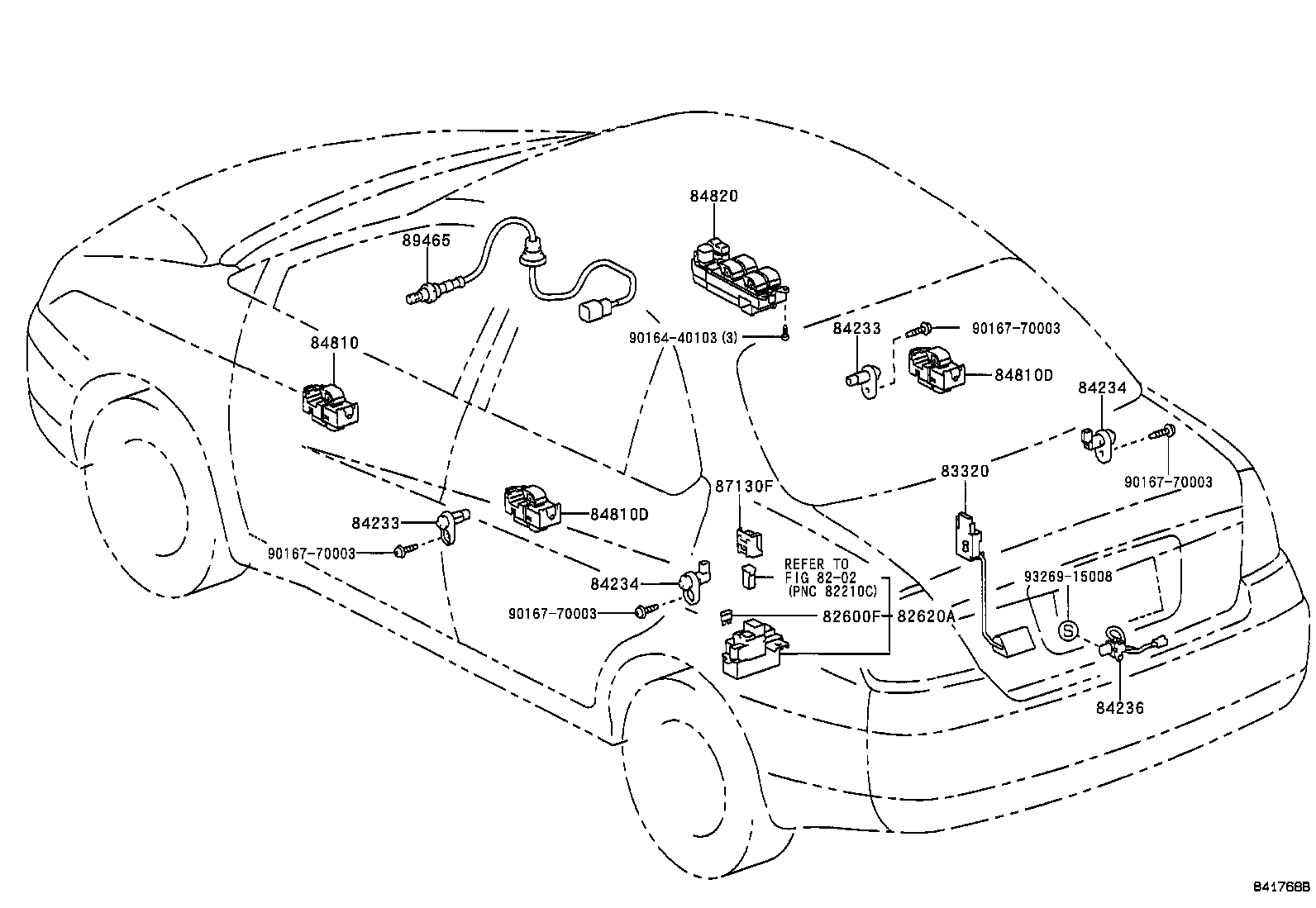

DOOR,ROOF,FLOOR & LUGGAGE ILLUST NO. 6 OF 6(0005- )

PRIUS | SWITCH RELAY COMPUTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82620A - BLOCK ASSY, FUSIBLE LINK 83320 - GAGE ASSY, FUEL SENDER 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 87130F - RELAY, BATTERY BLOWER, NO.1 89465 - SENSOR, OXYGEN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
