SWITCH RELAY COMPUTER

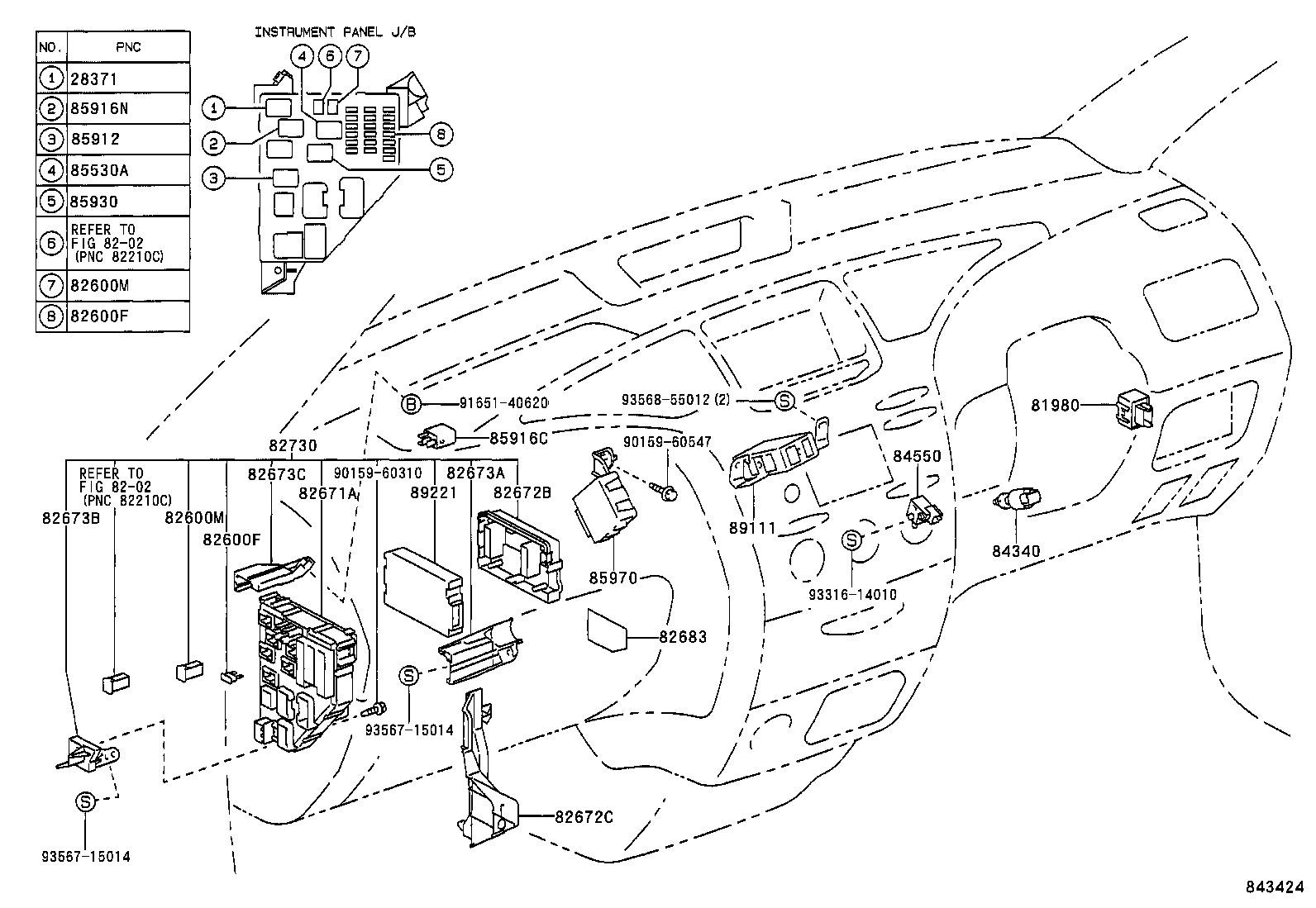

COWL ILLUST NO. 3 OF 6(0005- )RHD

PRIUS | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82600M - FUSE, MEDIUM CURRENT 82671A - BLOCK, JUNCTION 82672B - COVER, JUNCTION BLOCK 82672C - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82673C - BRACKET, JUNCTION BLOCK 82683 - PLATE, FUSE BLOCK CAUTION 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 85530A - RELAY, POWER OUTLET SOCKET 85912 - RELAY, DEFOGGER 85916C - RELAY, BACK UP LAMP 85916N - RELAY, TAIL LAMP 85930 - RELAY ASSY, POWER WINDOW 85970 - RELAY ASSY, DOOR OPENING 89111 - COMPUTER, NETWORK GATEWAY 89221 - COMPUTER, MULTIPLEX NETWORK BODY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
