TOYOTA PRIUS NHW20L-AHEEBK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

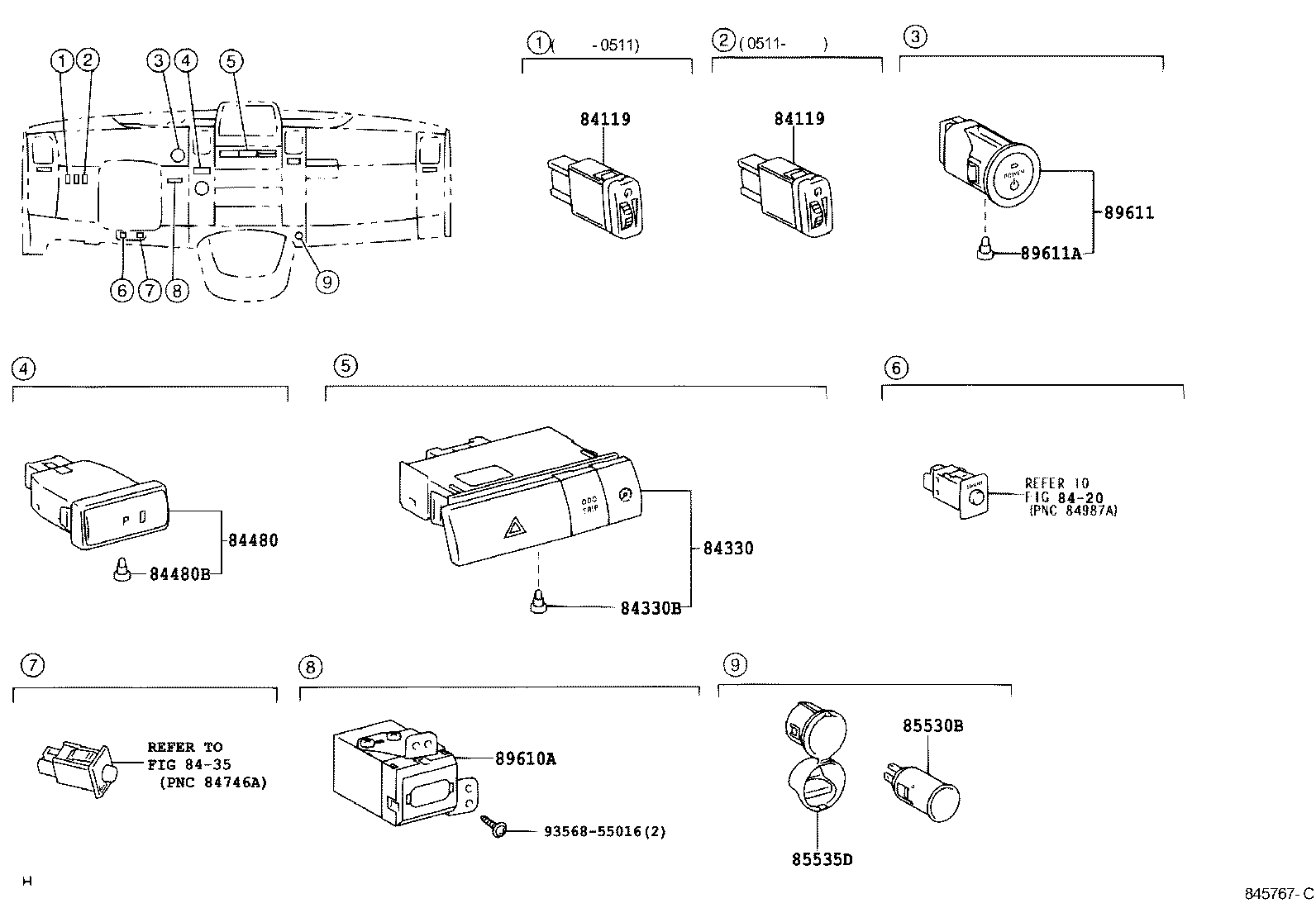

INSTRUMENT PANEL ILLUST NO. 4 OF 6(0308- )

 PRIUS |  SWITCH RELAY COMPUTER 84119 - RHEOSTAT, LIGHT CONTROL 84119 - RHEOSTAT, LIGHT CONTROL ** Refer Fig 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL 84330B - BULB, HAZARD WARNING SIGNAL SWITCH ** Refer Fig 84480 - SWITCH ASSY, MAIN 84480B - BULB, MAIN SWITCH ASSY 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 85535D - COVER, POWER OUTLET SOCKET, CENTER 89610A - HOLDER ASSY, ELECTRICAL KEY 89611 - SWITCH, PUSH START 89611A - BULB, PUSH START SWITCH  ** Std Part
