TOYOTA SIENNA MCL25L-PFAEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

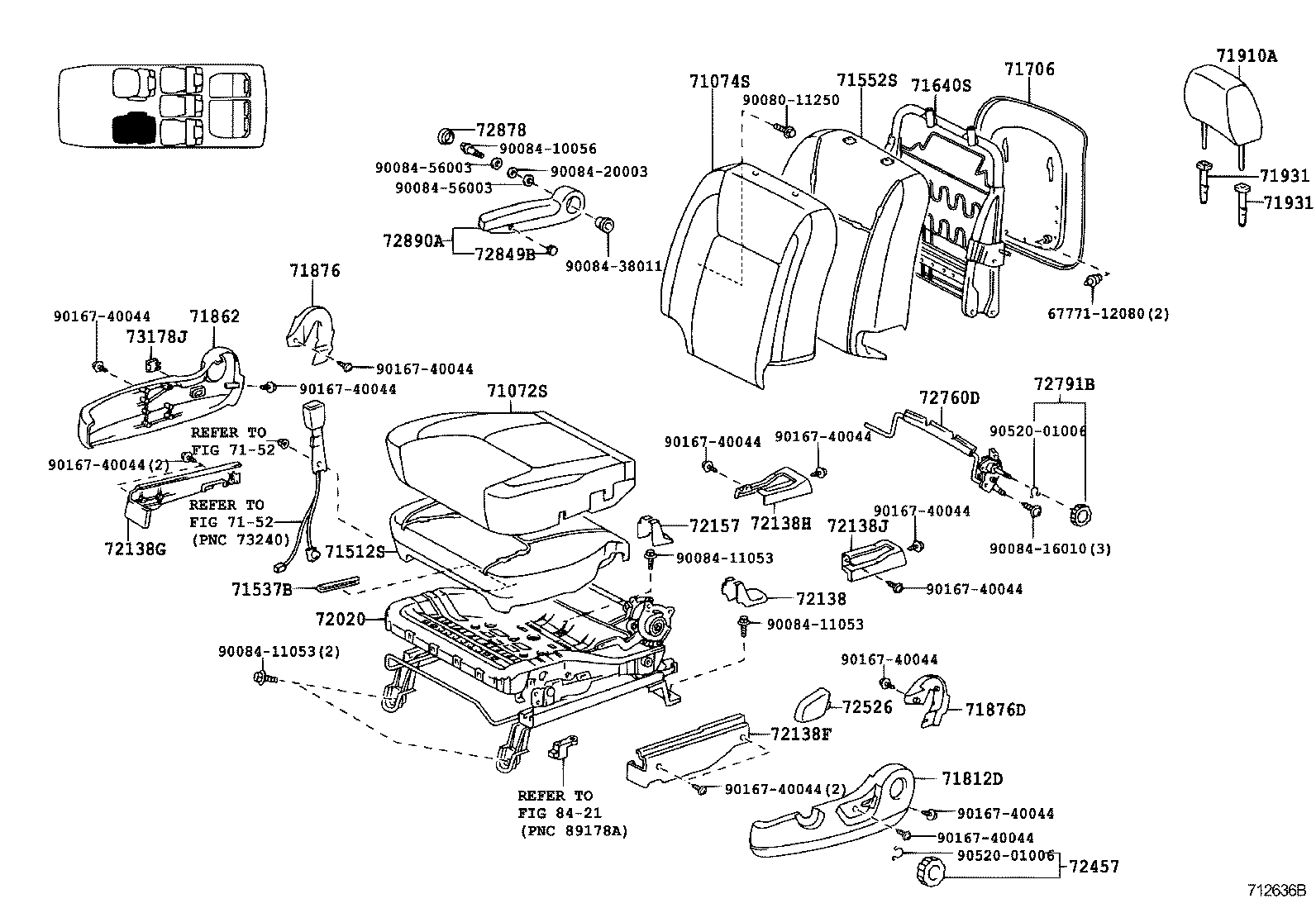

DRIVER SEAT ILLUST NO. 1 OF 3(0301-0409)CE,LE

SIENNA | SEAT SEAT TRACK ** Std Part 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71537B - PROTECTOR, REAR SEAT CUSHION 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72020 - ADJUSTER ASSY, FRONT SEAT, LH 72138 - COVER, SEAT TRACK OUTER, LH 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72157 - COVER, SEAT TRACK BRACKET, INNER 72457 - KNOB, VERTICAL SEAT ADJUSTER 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 72791B - KNOB, LUMBAR SUPPORT, LH 72849B - CAP, SEAT ARMREST, NO.1 72878 - COVER, SEAT ARMREST, LH 72890A - ARMREST ASSY, FRONT SEAT, INNER LH 73178J - CAP, SEAT BELT ANCHOR COVER, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
