TOYOTA SIENNA MCL25L-PFAEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

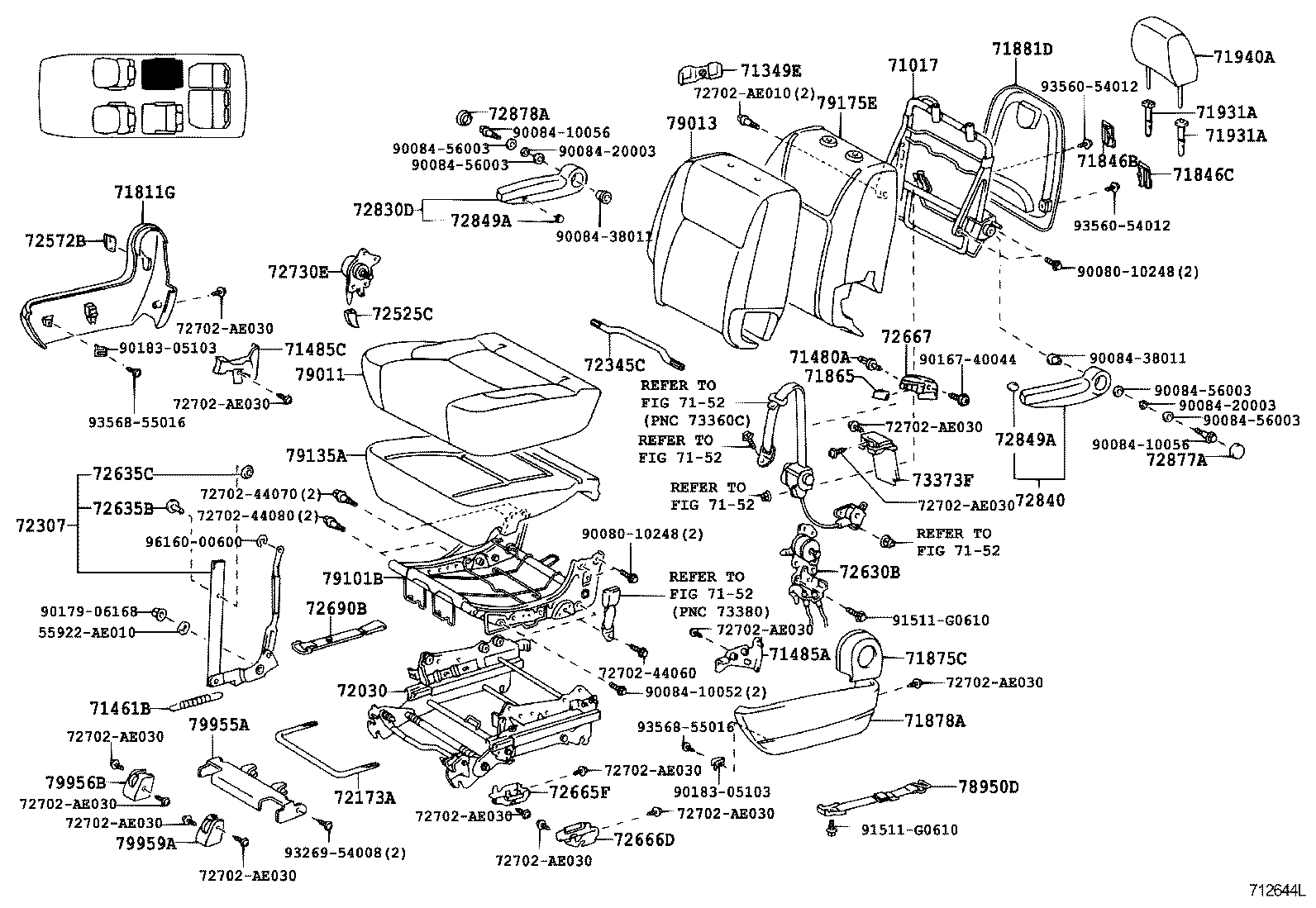

REAR NO.1 SEAT-RH ILLUST NO. 2 OF 3(0301-0409)7S

 SIENNA |  SEAT SEAT TRACK  ** Std Part 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71349E - COVER, REAR SEAT BACK HINGE 71461B - SPRING, REAR SEAT CUSHION, RH 71480A - CLIP (FOR REAR SEAT BACK) 71485A - COVER, REAR SEAT HINGE, NO.2 RH 71485C - COVER, REAR SEAT HINGE, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71811G - SHIELD, REAR SEAT CUSHION, RH 71846B - CAP, REAR SEAT BACK BOARD, NO.1 71846C - CAP, REAR SEAT BACK BOARD, NO.2 71865 - BEZEL, REAR SEAT COVER, NO.1 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71881D - BOARD, REAR SEAT BACK, RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72030 - ADJUSTER ASSY, REAR NO.1 SEAT 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH 72345C - PIPE,RECLINING CONNECTING, RH 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72572B - CAP, RECLINING ADJUSTER KNOB, RH 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH 72635B - HOOK, REAR SEAT BACK LOCK(MALE) 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) 72665F - COVER, REAR SEAT LOCK, RH(FOR RH SEAT) 72666D - COVER, REAR SEAT LOCK, LH(FOR RH SEAT) 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER 72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH 72830D - ARMREST ASSY, REAR SEAT, RH 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH 72849A - CAP, SEAT ARMREST, NO.2 72849A - CAP, SEAT ARMREST, NO.2 72877A - COVER, SEAT ARMREST, NO.2 RH 72878A - COVER, SEAT ARMREST, NO.2 LH 73373F - COVER, REAR SEAT SHOULDER BELT HOLE 78950D - BAND ASSY, FOLD REAR SEAT STOPPER, RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH 79135A - PAD, NO.1 SEAT CUSHION, RH 79175E - PAD, NO.1 SEAT BACK, RH 79955A - COVER, REAR SEAT FRONT BRACKET, RH 79956B - COVER, REAR SEAT LEG SIDE, RH 79959A - COVER, REAR SEAT LEG, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
