TOYOTA SIENNA MCL25L-PFAEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

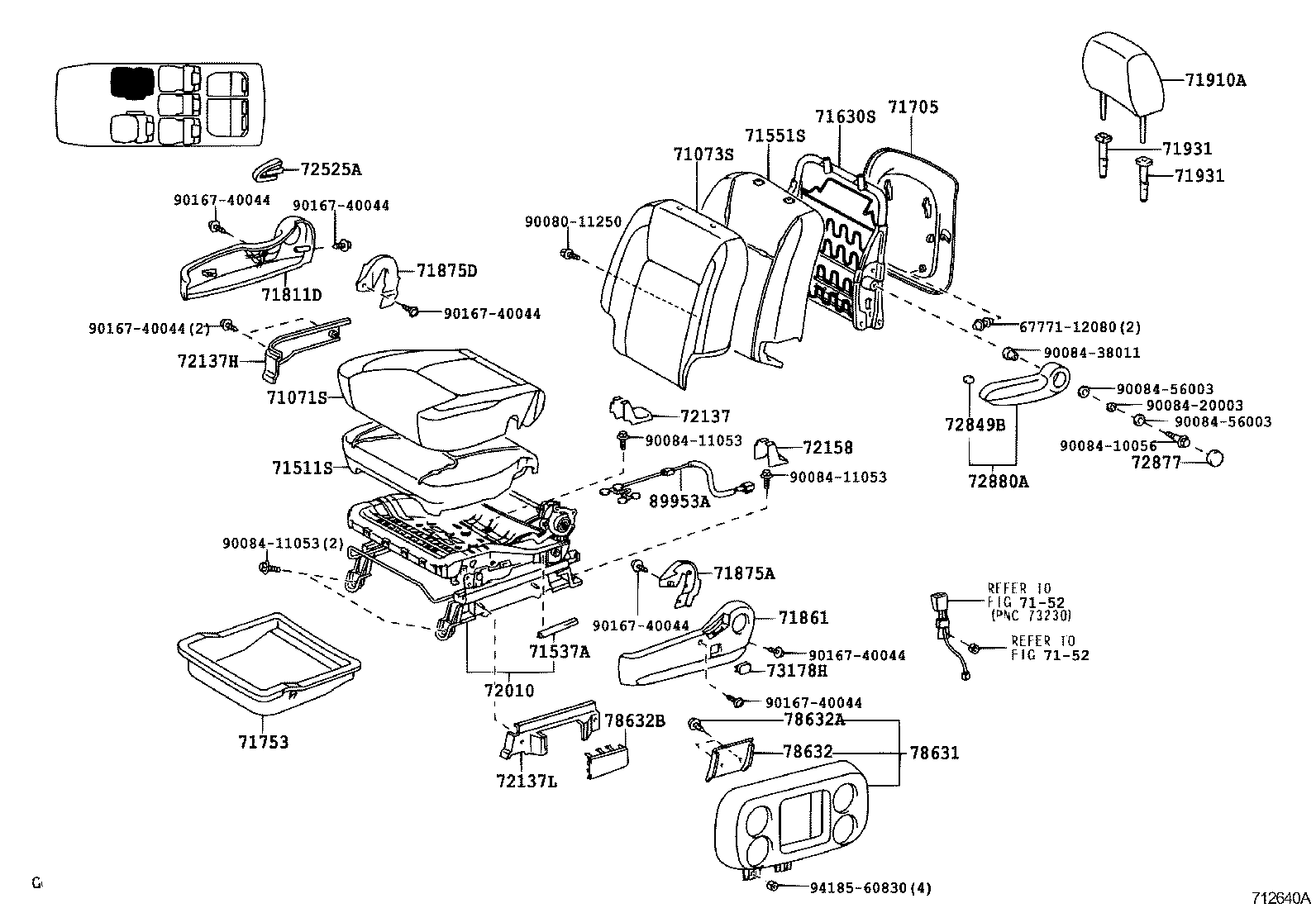

SEAT SEAT TRACK

PASSENGER SEAT ILLUST NO. 1 OF 3(0301-0409)CE,LE

SIENNA | SEAT SEAT TRACK ** Std Part 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71753 - TRAY, FRONT SEAT UNDER 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72137 - COVER, SEAT TRACK OUTER, RH 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72849B - CAP, SEAT ARMREST, NO.1 72877 - COVER, SEAT ARMREST, RH 72880A - ARMREST ASSY, FRONT SEAT, INNER RH 73178H - CAP, SEAT BELT ANCHOR COVER, RH 78631 - TABLE, FRONT SEAT SIDE 78632 - COVER, FRONT SEAT SIDE TABLE 78632A - CLIP, FRONT SEAT SIDE TABLE COVER 78632B - COVER, FRONT SEAT SIDE TABLE LEG 89953A - SENSOR, BELT WARNING OCCUPANT DETECTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
