TOYOTA SIENNA MCL25L-PFAEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

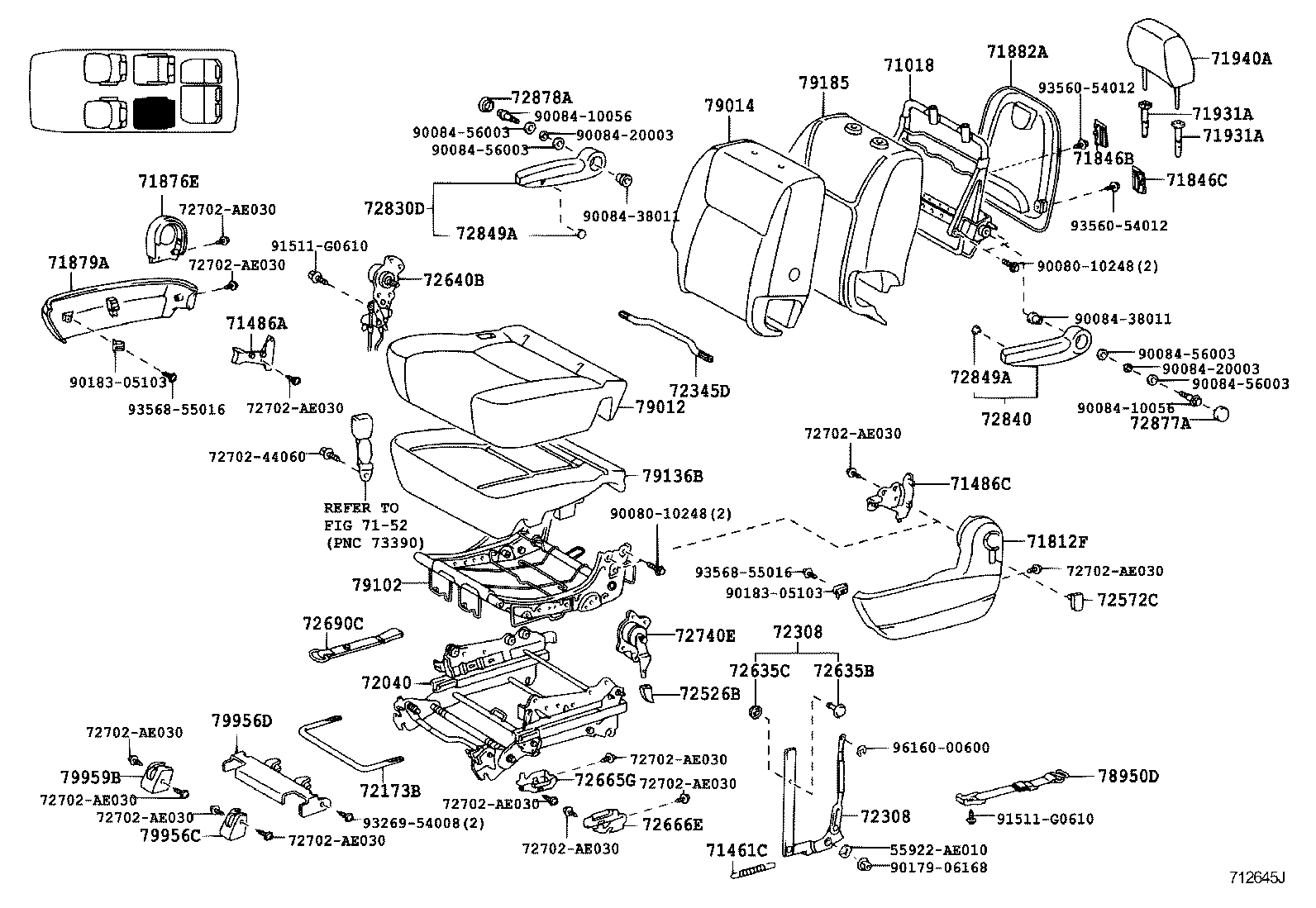

REAR NO.1 SEAT-LH ILLUST NO. 2 OF 3(0301-0409)7S

SIENNA | SEAT SEAT TRACK ** Std Part 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71461C - SPRING, REAR SEAT CUSHION, LH 71486A - COVER, REAR SEAT HINGE, NO.2 LH 71486C - COVER, REAR SEAT HINGE, LH ** Refer Fig 71812F - SHIELD, REAR SEAT CUSHION, LH 71846B - CAP, REAR SEAT BACK BOARD, NO.1 71846C - CAP, REAR SEAT BACK BOARD, NO.2 71876E - COVER, RECLINING ADJUSTER INSIDE, LH 71879A - COVER, REAR SEAT RECLINING, INNER LH 71882A - BOARD, REAR SEAT BACK, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72040 - ADJUSTER ASSY, REAR NO.2 SEAT 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH 72308 - LINK SUB-ASSY, RECLINING CONTROL, LH 72308 - LINK SUB-ASSY, RECLINING CONTROL, LH 72345D - PIPE, RECLINING CONNECTING, LH 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72572C - CAP, RECLINING ADJUSTER KNOB, LH 72635B - HOOK, REAR SEAT BACK LOCK(MALE) 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH 72665G - COVER, REAR SEAT LOCK, RH(FOR LH SEAT) 72666E - COVER, REAR SEAT LOCK, LH(FOR LH SEAT) 72690C - LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 72740E - ADJUSTER ASSY, REAR SEAT BACK, OUTER LH 72830D - ARMREST ASSY, REAR SEAT, RH 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH 72849A - CAP, SEAT ARMREST, NO.2 72849A - CAP, SEAT ARMREST, NO.2 72877A - COVER, SEAT ARMREST, NO.2 RH 72878A - COVER, SEAT ARMREST, NO.2 LH 78950D - BAND ASSY, FOLD REAR SEAT STOPPER, RH 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH 79136B - PAD, NO.1 SEAT CUSHION, LH 79185 - PAD, NO.1 SEAT BACK, LH 79956C - COVER, REAR SEAT LEG SIDE, LH 79956D - COVER, REAR SEAT FRONT BRACKET, LH 79959B - COVER, REAR SEAT LEG, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
