TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

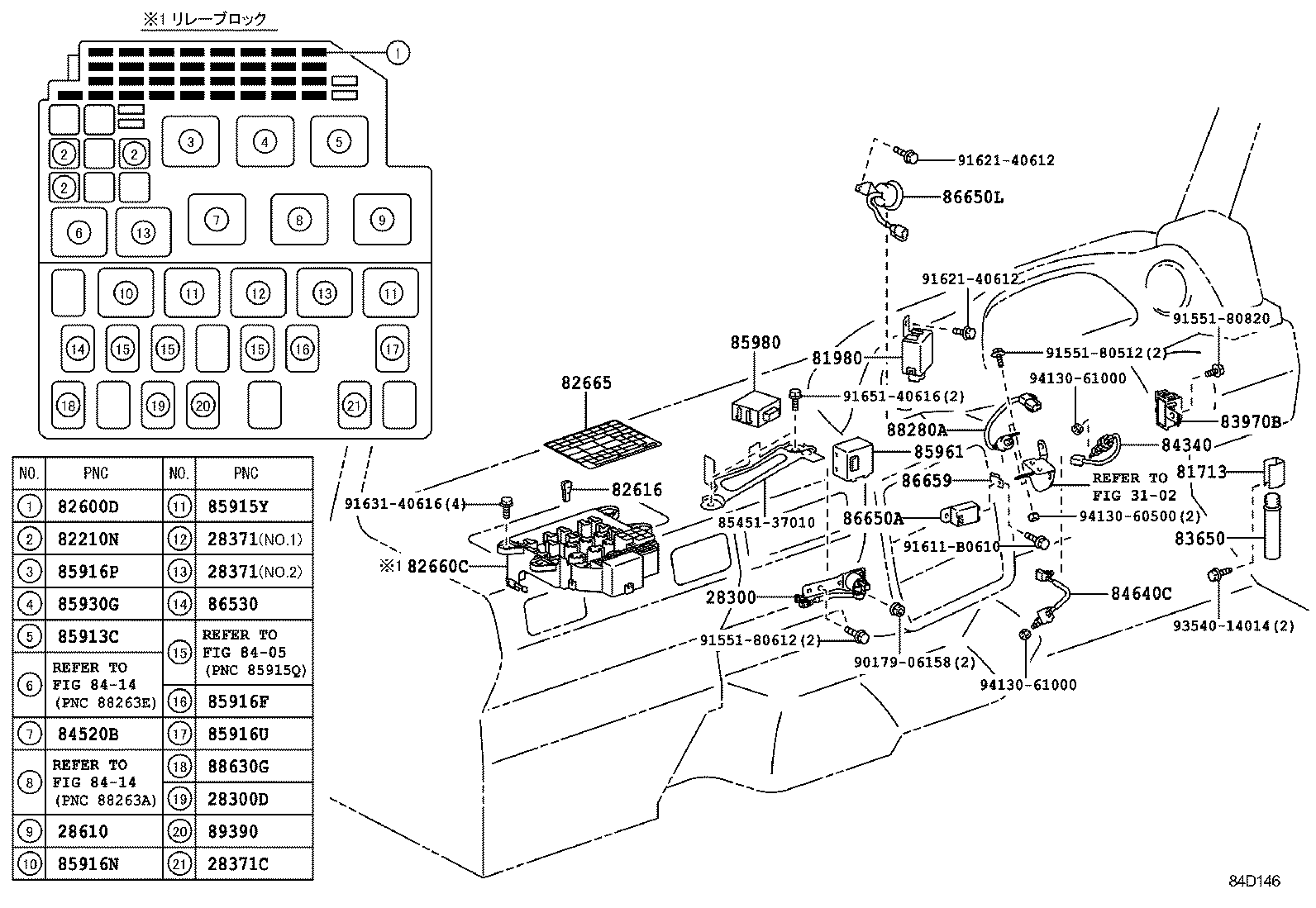

SWITCH RELAY COMPUTER

ｶｳﾙ ILLUST NO. 4 OF 7(1203- )

QUICK DELIVERY 200 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28371 - RELAY, IGNITION, NO.1 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 28610 - RELAY ASSY, GLOW PLUG ** Refer Fig 81713 - HOLDER, FUSEE 81980 - FLASHER ASSY, TURN SIGNAL 82210N - INSTRUMENT PANEL FUSIBLE LINK 82600D - INSTRUMENT PANEL FUSE 82616 - PULLER, FUSE 82660C - BLOCK ASSY, RELAY 82665 - LABEL, RELAY BLOCK 83650 - FUSEE 83970B - BUZZER ASSY, REVERSE WARNING ** Refer Fig ** Refer Fig ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84520B - RELAY, CLUTCH START 84640C - SWITCH ASSY, EXHAUST RETARDER ** Std Part 85913C - RELAY, HEATER, NO.1 85915Y - RELAY, DOOR LOCK 85916F - RELAY, CORNERING LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85916U - RELAY, HEADLAMP, NO.2 85930G - RELAY, ACC 85961 - RELAY, HEADLAMP RETAINER 85980 - RELAY ASSY, DOOR CONTROL 86530 - RELAY ASSY, HORN 86650A - BUZZER ASSY, DOOR OPENING 86650L - BUZZER ASSY, VACUUM WARNING 86659 - BRACKET, BUZZER 88280A - SWITCH ASSY, CLUTCH 88630G - RELAY ASSY, COOLER 89390 - RELAY, BRAKE WARNING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
