TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

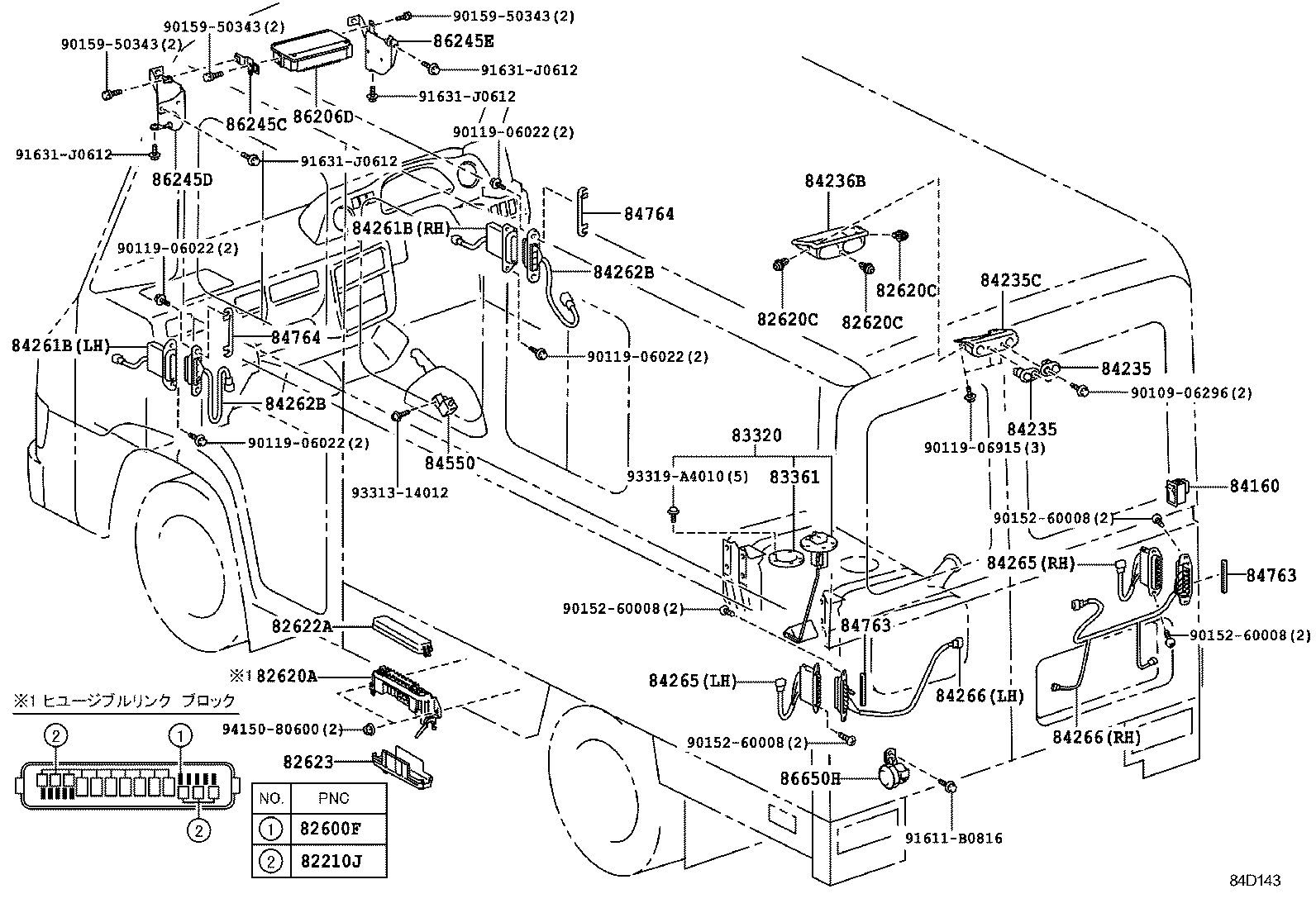

SWITCH RELAY COMPUTER

ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ ILLUST NO. 7 OF 7(1203- )

QUICK DELIVERY 200 | SWITCH RELAY COMPUTER 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82620A - BLOCK ASSY, FUSIBLE LINK 82620C - CLIP 82620C - CLIP 82620C - CLIP 82622A - COVER, FUSIBLE LINK, UPPER, NO.2 82623 - COVER, FUSIBLE LINK, LOWER 83320 - GAGE ASSY, FUEL SENDER 83361 - GASKET, FUEL SENDER GAGE 84160 - SWITCH ASSY, ROOM LAMP 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) 84235C - BRACKET, COURTESY SWITCH(FOR BACK DOOR) 84236B - COVER, COURTESY LAMP SWITCH 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE 84265 - JUNCTION, BACK DOOR MALE 84265 - JUNCTION, BACK DOOR MALE 84266 - JUNCTION, BACK DOOR FEMALE 84266 - JUNCTION, BACK DOOR FEMALE 84550 - SWITCH ASSY, PARKING BRAKE 84763 - PLATE, SWITCH 84763 - PLATE, SWITCH 84764 - PLATE, SWITCH, NO.2 84764 - PLATE, SWITCH, NO.2 86206D - CONVERTER SUB-ASSY, VOLTAGE 86245C - BRACKET, VOLTAGE CONVERTER 86245D - BRACKET, VOLTAGE CONVERTER, NO.2 86245E - BRACKET, VOLTAGE CONVERTER, NO.3 86650H - BUZZER ASSY, BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
