TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

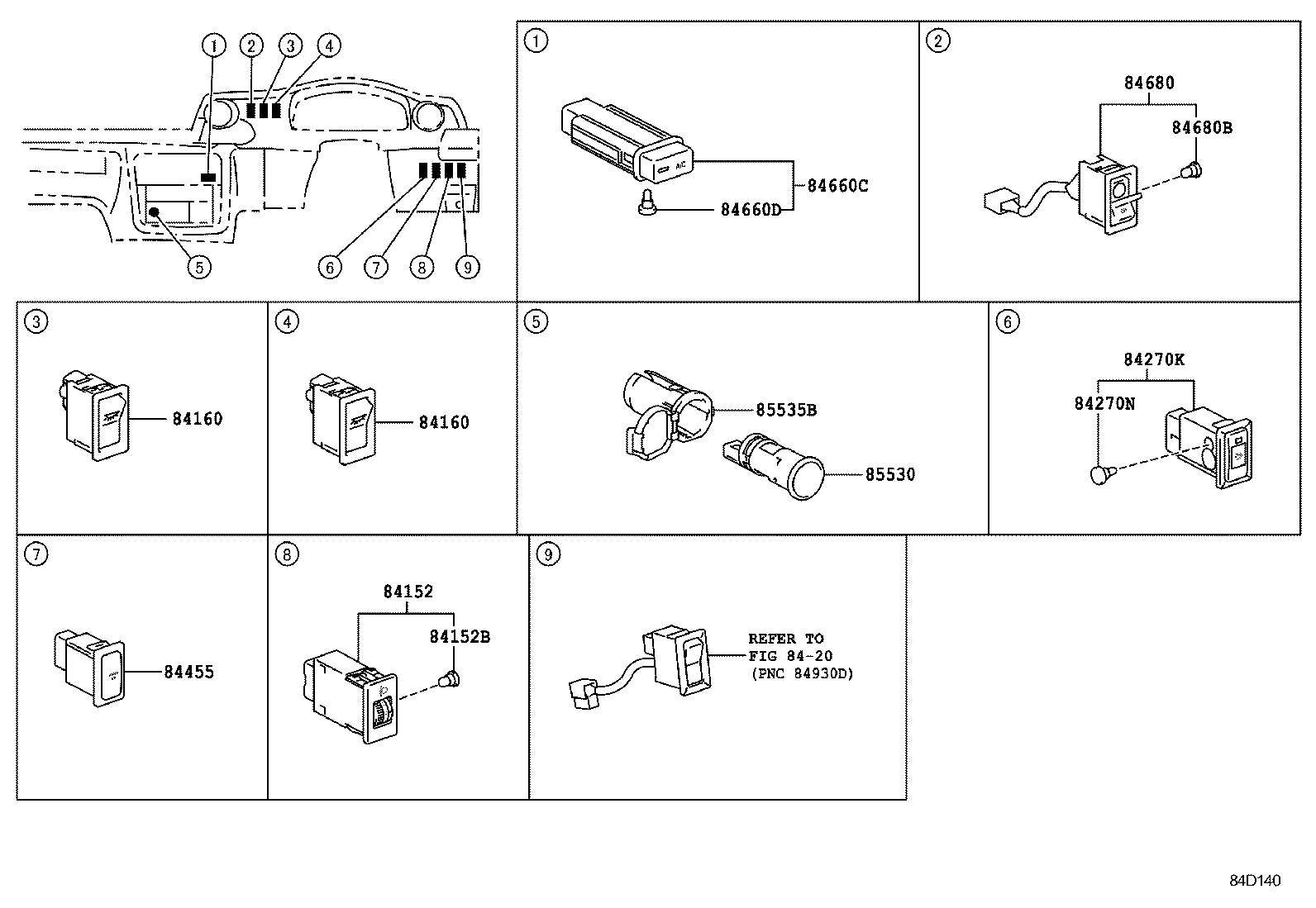

SWITCH RELAY COMPUTER

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 5 OF 7(1203- )

QUICK DELIVERY 200 | SWITCH RELAY COMPUTER 84152 - SWITCH, HEADLAMP LEVELING 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) 84160 - SWITCH ASSY, ROOM LAMP 84160 - SWITCH ASSY, ROOM LAMP ** Refer Fig 84270K - SWITCH ASSY, DPR 84270N - BULB, DPR SWICH ASSY 84455 - SWITCH, WARM UP 84660C - SWITCH, COOLER 84660D - BULB(FOR COOLER SWITCH) 84680 - SWITCH ASSY, EXHAUST BRAKE MAIN 84680B - BULB 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85535B - COVER, POWER OUTLET SOCKET, NO.1
