TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

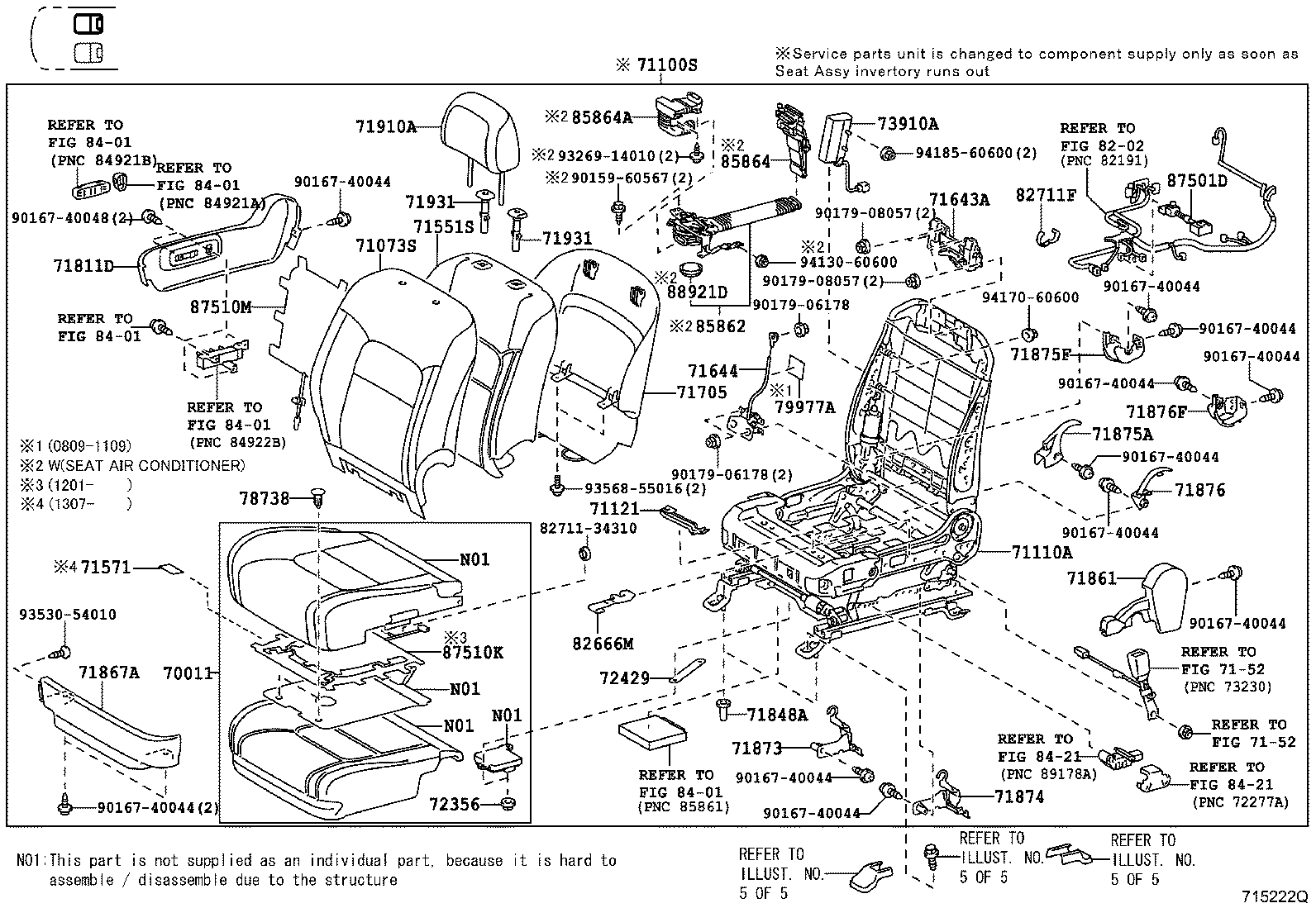

SEAT SEAT TRACK

PASSENGER SEAT ILLUST NO. 2 OF 5(0709- )

LAND CRUISER 200 | SEAT SEAT TRACK 70011 - CUSHION ASSY, NO.1 SEAT 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH 71121 - BRACKET, FRONT SEAT CUSHION, RH ** Refer Fig ** Refer Fig 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71571 - PAD, FRONT SEAT BACK SILENCER, A 71643A - UNIT, ACTIVE HEADREST, UPR 71644 - UNIT, ACTIVE HEADREST, LWR 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72356 - NUT, SIDE SUPPORT, RH 72429 - PLATE, FRONT SEAT ADJUSTER, RH 73910A - AIR BAG ASSY, FRONT SEAT, RH 78738 - PIN, SUB SEAT CUSHION PIN 79977A - FELT, SEAT BACK ** Refer Fig 82666M - HOLDER, CONECTOR ** Std Part 82711F - CLAMP, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85862 - BLOWER, SEAT CLIMATE CONTROL, RH 85864 - CONTROLLER, SEAT CLIMATE CONTROL,RH 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH 87501D - CONTROL SUB-ASSY, SEAT HEATER 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH 88921D - FILTER, AIR, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
