TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

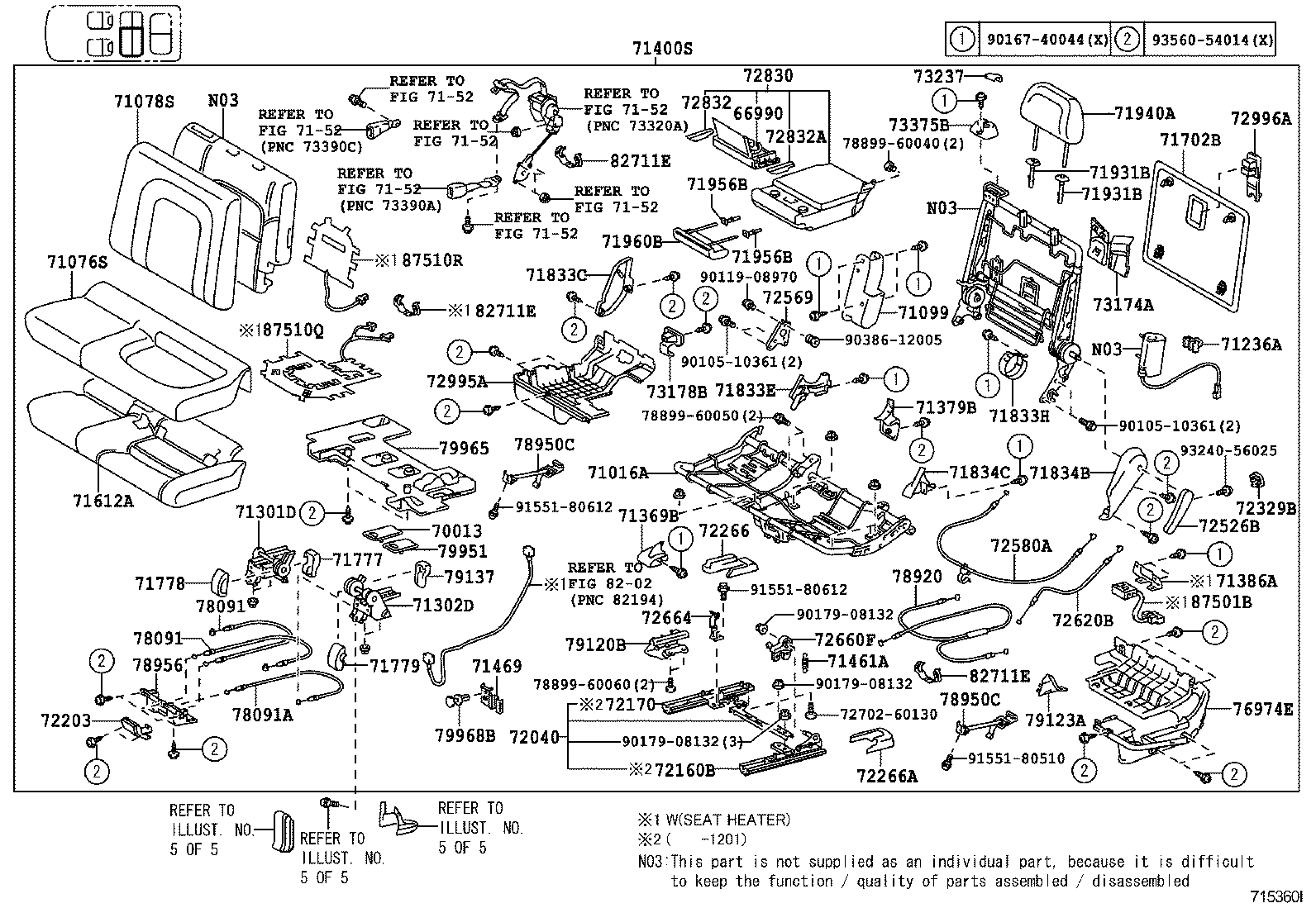

SEAT SEAT TRACK

REAR NO.1 SEAT (LH) ILLUST NO. 3 OF 5(0709- )

LAND CRUISER 200 | SEAT SEAT TRACK 66990 - HOLDER ASSY, CUP 70013 - COVER ASSY, NO.1 SEAT CUSHION 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71099 - COVER SUB-ASSY, REAR SEAT BACK, LOWER LH 71236A - CLAMP, REAR SEAT CUSHION SPRING 71301D - HINGE SUB-ASSY, REAR SEAT, RH 71302D - HINGE SUB-ASSY, REAR SEAT, LH 71369B - COVER, REAR SEAT BACK STAY, LH 71379B - COVER, REAR SEAT BACK HINGE, LH 71386A - BRACKET, REAR SEAT CUSHION HOLDER, LH 71400S - SEAT ASSY, REAR, LH (FOR SEPARATE TYPE) 71461A - SPRING, REAR SEAT CUSHION, NO.1 71469 - PROTECTOR, REAR SEAT, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71612A - PAD, REAR SEAT CUSHION, LH 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH 71777 - COVER, REAR SEAT SIDE HINGE FEMALE 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71833E - COVER, REAR SEAT RECLINING, NO.3 RH 71833H - COVER, REAR SEAT RECLINING, NO.1 RH 71834B - COVER, REAR SEAT RECLINING, NO.2 LH 71834C - COVER, REAR SEAT RECLINING, NO.3 LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71960B - HEADREST ASSY, REAR SEAT, CENTER 72040 - ADJUSTER ASSY, REAR NO.2 SEAT 72160B - TRACK ASSY, REAR NO.1 SEAT, RH 72170 - TRACK ASSY, REAR SEAT, OUTER LH 72203 - HANDLE SUB-ASSY, REAR SEAT TRACK 72266 - COVER, SEAT TRACK UPPER RAIL, LH 72266A - COVER, SEAT TRACK UPPER RAIL, LH 72329B - COVER, SEAT ADJUSTER BOLT, NO.1 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72569 - PLATE, SEAT BACK STOPPER 72580A - CABLE ASSY, RECLINING ADJUSTING, LH 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK 72660F - LOCK ASSY, REAR SEAT, LH 72664 - LEVER, REAR SEAT LOCK CONTROL, LH ** Std Part 72830 - ARMREST ASSY, REAR SEAT, CENTER 72832 - PLATE, REAR SEAT ARMREST 72832A - PLATE, NO.1 SEAT ARMREST 72995A - COVER, REAR SEAT 72996A - COVER, REAR SEAT BACK 73174A - COVER, REAR SEAT BELT HOLE, LH 73178B - CAP, SEAT BELT ANCHOR COVER 73237 - COVER, SHOULDER BELT ANCHOR 73375B - COVER, REAR SEAT SHOULDER BELT HOLE, LH 76974E - COVER, REAR UNDER SIDE, LH 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL 78091A - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL ** Std Part ** Std Part ** Std Part 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 78950C - BAND ASSY, FOLD SEAT STOPPER 78950C - BAND ASSY, FOLD SEAT STOPPER 78956 - COVER, REAR SEAT UNDER TRAY LH 79120B - LEG ASSY, NO.1 SEAT, LH 79123A - PLATE, NO.1 SEAT CUSHION 79137 - COVER, NO.1 SEAT HINGE 79951 - COVER, NO.1 SEAT CUSHION 79965 - COVER, REAR SEAT LEG SIDE, NO.2 79968B - CLIP ** Refer Fig 82711E - CLAMP, WIRING HARNESS 82711E - CLAMP, WIRING HARNESS 82711E - CLAMP, WIRING HARNESS 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH 87510Q - HEATER ASSY, SEAT 87510R - HEATER ASSY, SEAT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
