TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

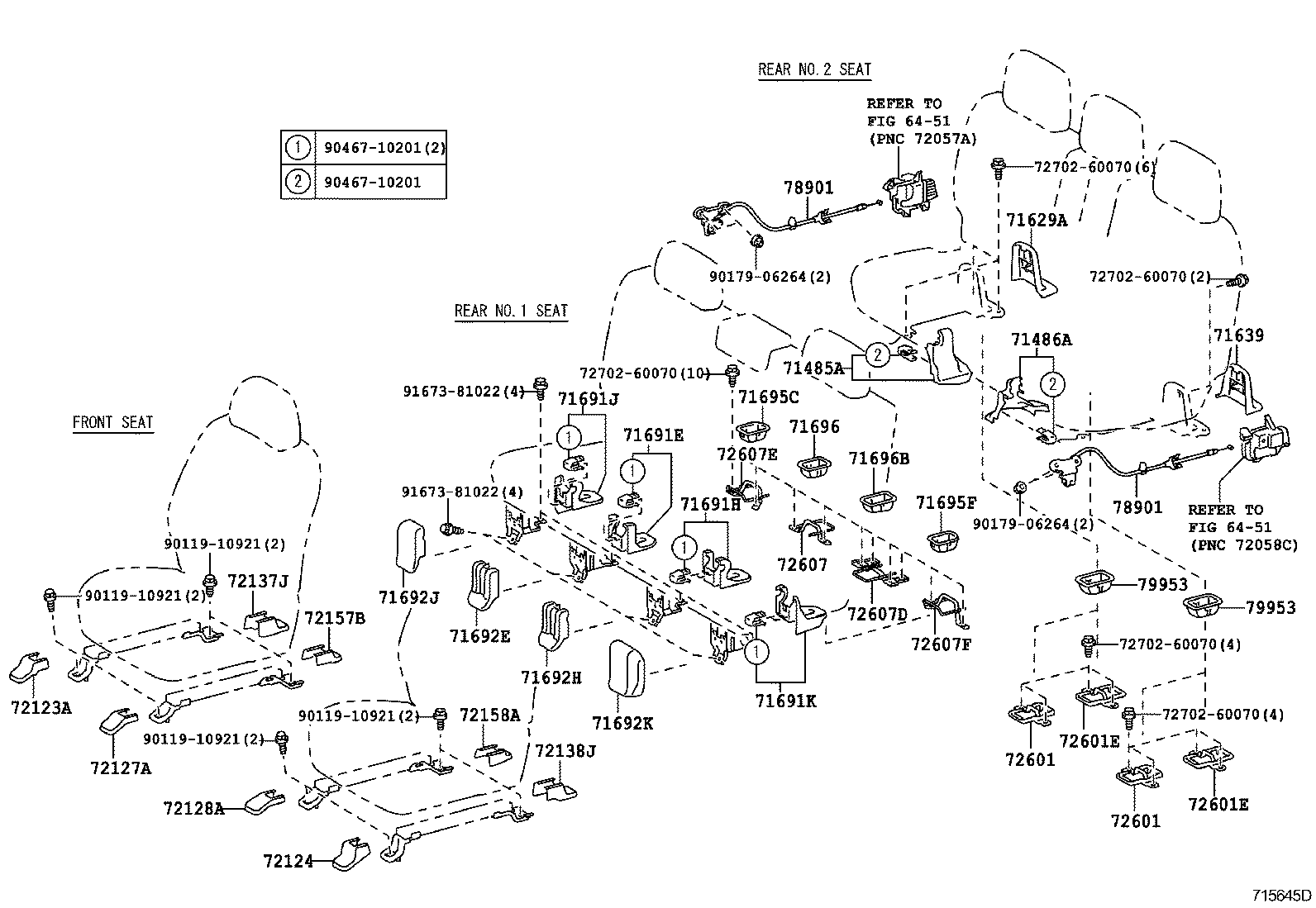

SEAT SEAT TRACK

COVER & LOCK STRIKER ILLUST NO. 5 OF 5(0709- )

LAND CRUISER 200 | SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71485A - COVER, REAR SEAT HINGE, NO.2 RH 71486A - COVER, REAR SEAT HINGE, NO.2 LH 71629A - COVER, REAR SEAT CUSHION HINGE, RH 71639 - COVER, REAR SEAT CUSHION HINGE, LH 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 71691H - COVER, REAR SEAT CUSHION HINGE, NO.2 71691J - COVER, REAR SEAT CUSHION HINGE, NO.3 71691K - COVER, REAR SEAT CUSHION HINGE, NO.4 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 71692J - COVER, REAR SEAT CUSHION HINGE, NO.4 71692K - COVER, REAR SEAT CUSHION HINGE, NO.5 71695C - PROTECTOR, REAR SEAT, NO.1 71695F - PROTECTOR, REAR SEAT, NO.1 71696 - PROTECTOR, REAR SEAT, NO.2 71696B - PROTECTOR, REAR SEAT, NO.2 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72601E - STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2 72601E - STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK 72607D - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.2 72607E - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.3 72607F - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 78901 - LOCK SUB-ASSY, FOLD SEAT LEG 78901 - LOCK SUB-ASSY, FOLD SEAT LEG 79953 - COVER, NO.3 SEAT CUSHION 79953 - COVER, NO.3 SEAT CUSHION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
