TOYOTA ALPHARD HV ATH10W-PFXGB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 8(0307- )

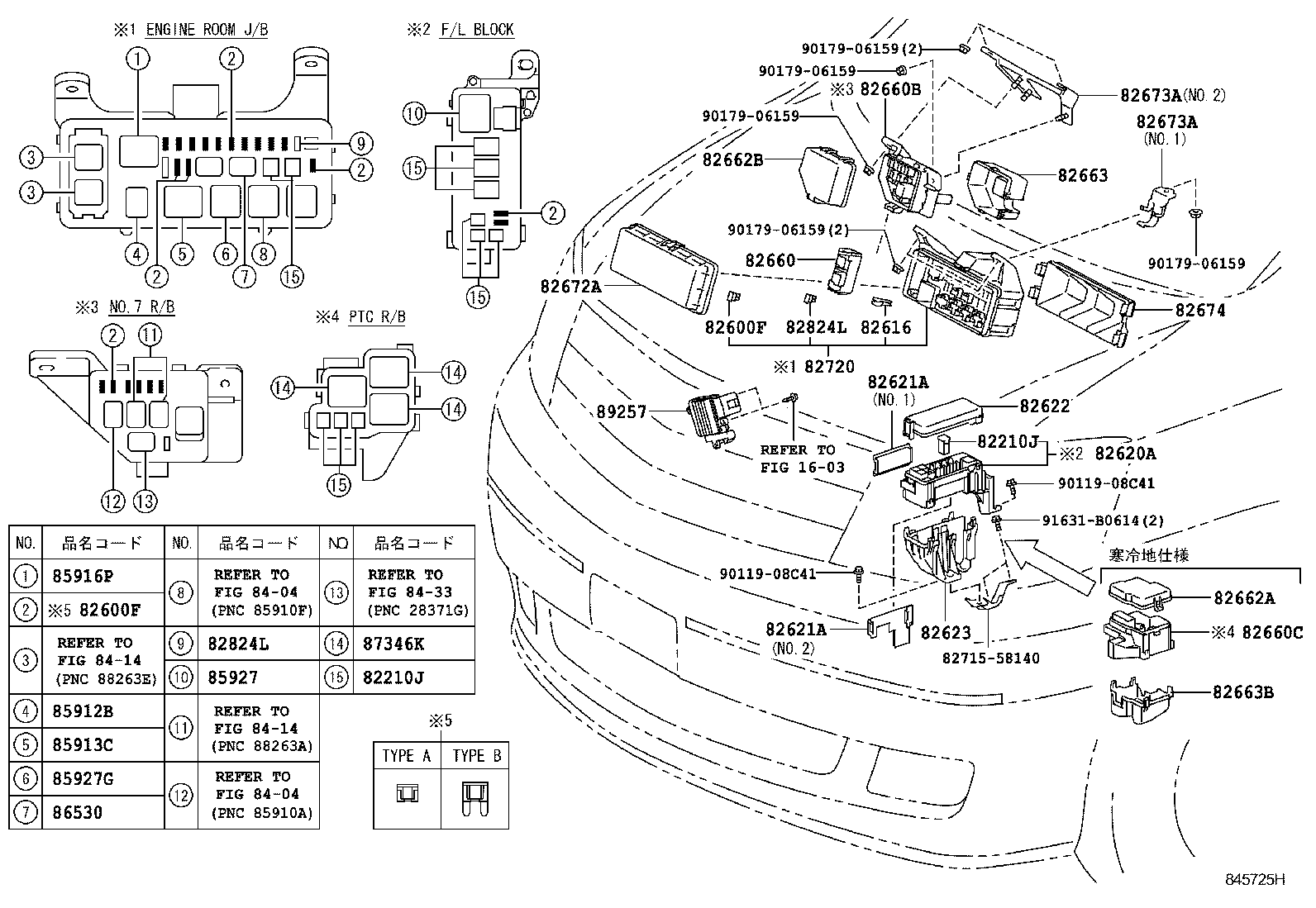

ALPHARD HV | SWITCH RELAY COMPUTER ** Refer Fig 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82621A - COVER, FUSIBLE LINK 82621A - COVER, FUSIBLE LINK 82622 - COVER, FUSIBLE LINK, UPPER 82623 - COVER, FUSIBLE LINK, LOWER 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER ** Std Part 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82824L - PIN, SHORT 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) 85913C - RELAY, HEATER, NO.1 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927G - RELAY, AIR CONDITIONER WATER PUMP 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
