TOYOTA ALPHARD HV ATH10W-PFXGB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

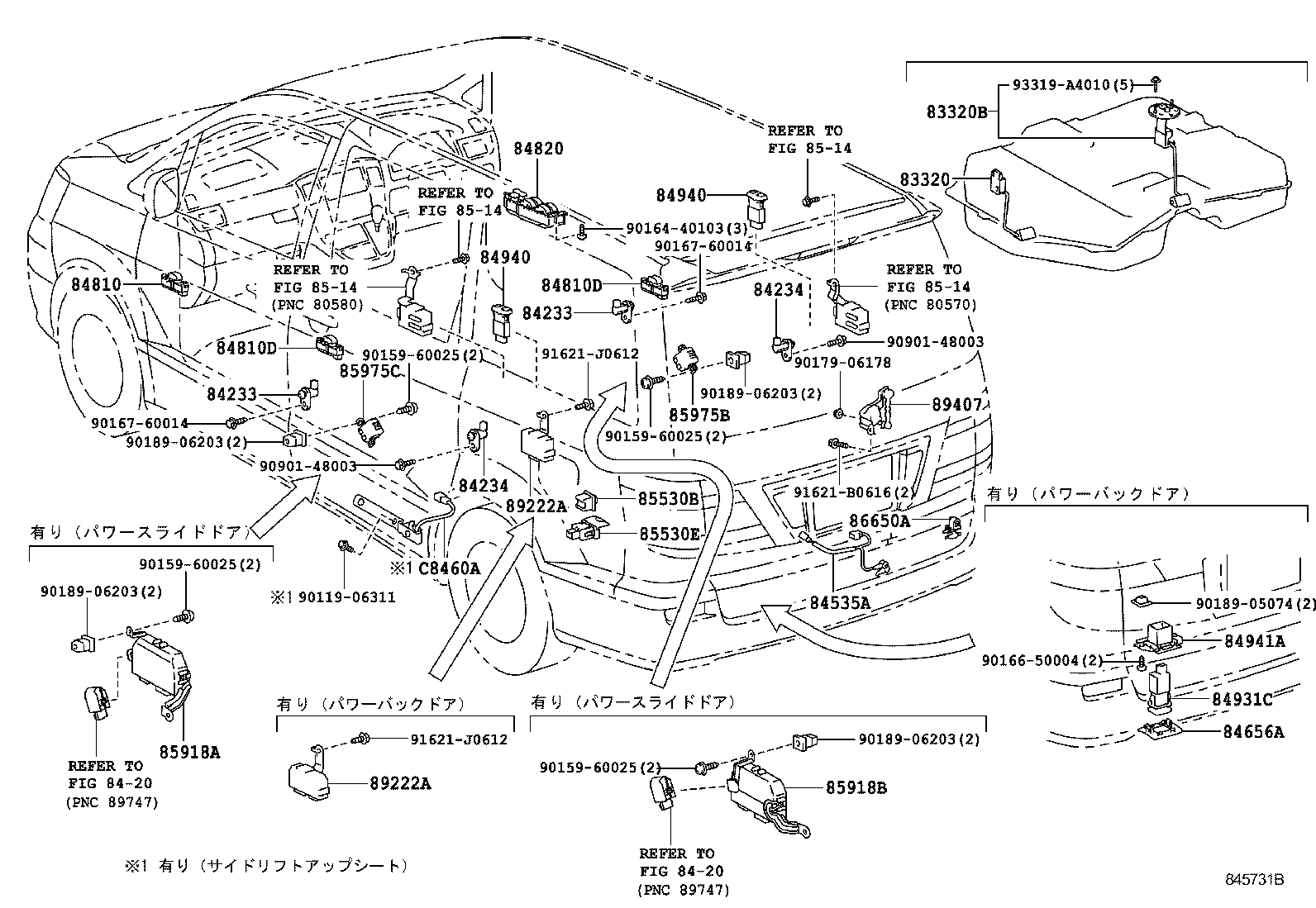

ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ ILLUST NO. 8 OF 8(0307- )

ALPHARD HV | SWITCH RELAY COMPUTER 83320 - GAGE ASSY, FUEL SENDER 83320B - GAGE ASSY, FUEL SENDER, NO.2 ** Refer Fig ** Refer Fig 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84535A - SWITCH, DOOR LOCK 84656A - BEZEL, SWITCH 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84931C - SWITCH, BACK DOOR CONTROL 84940 - SWITCH ASSY, CURTAIN 84940 - SWITCH ASSY, CURTAIN 84941A - BASE, SWITCH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85918A - RELAY, DOOR CONTROL 85918B - RELAY, DOOR CONTROL, RH 85975B - RELAY, SLIDE DOOR CLOSER, RH 85975C - RELAY, SLIDE DOOR CLOSER, LH 86650A - BUZZER ASSY, DOOR OPENING 89222A - COMPUTER, MULTIPLEX NETWORK DOOR 89222A - COMPUTER, MULTIPLEX NETWORK DOOR 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part C8460A - SWITCH ASSY, LIMIT, LH NO.2
