TOYOTA ALPHARD HV ATH10W-PFXGB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

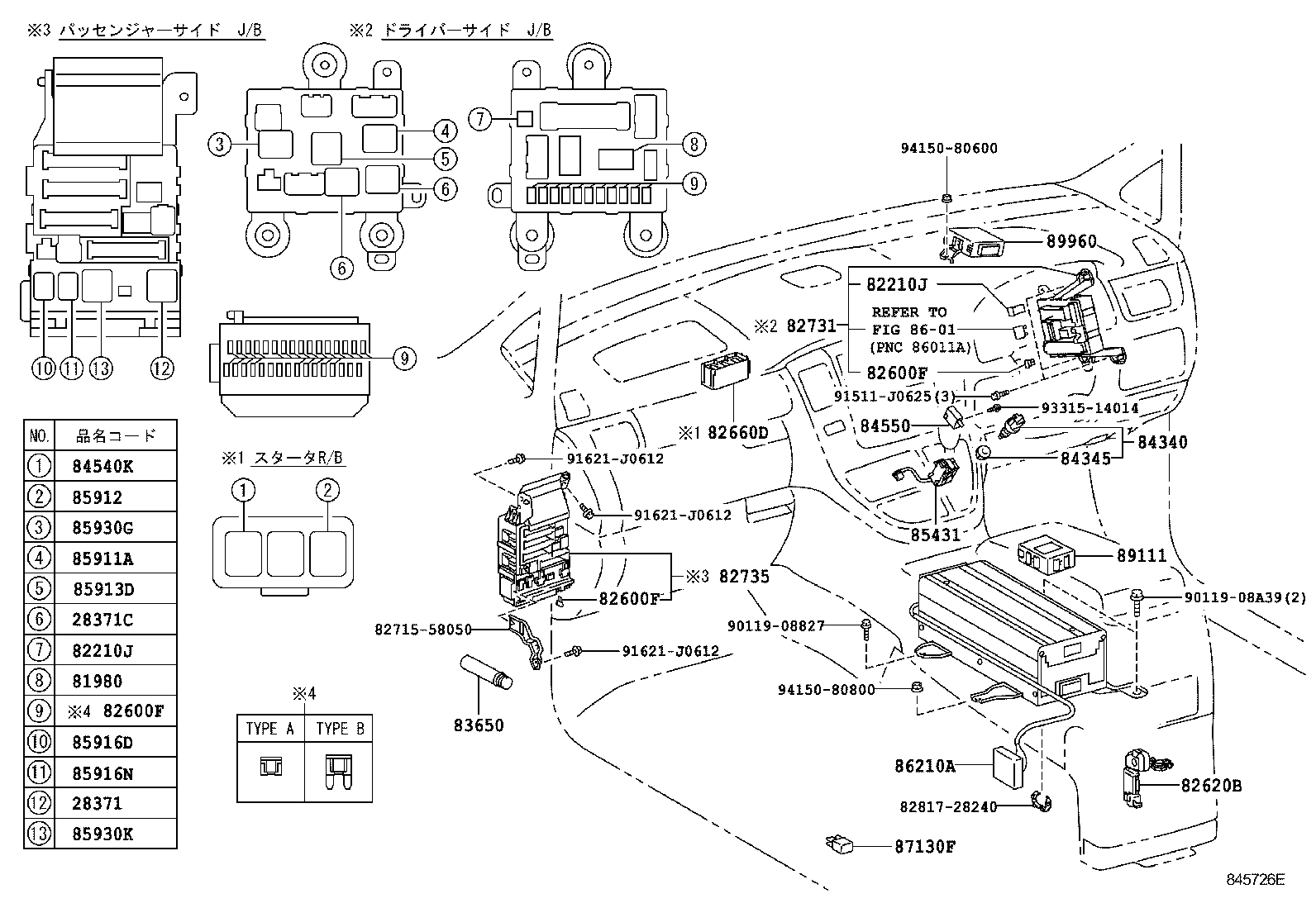

ｶｳﾙ ILLUST NO. 3 OF 8(0307- )

ALPHARD HV | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82620B - BLOCK ASSY, FUSIBLE LINK 82660D - BLOCK ASSY, RELAY ** Std Part 82731 - BLOCK, DRIVER SIDE JUNCTION 82735 - BLOCK, PASSENGER SIDE JUNCTION ** Std Part 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84540K - RELAY,NEUTRAL START SWITCH 84550 - SWITCH ASSY, PARKING BRAKE 85431 - SOLENOID, SHIFT LOCK 85911A - RELAY, AUTO CURTAIN 85912 - RELAY, DEFOGGER 85913D - RELAY, HEATER, NO.2 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85930G - RELAY, ACC 85930K - RELAY, ACC, NO.2 ** Refer Fig 86210A - INVERTER ASSY, VOLTAGE 87130F - RELAY, BATTERY BLOWER, NO.1 89111 - COMPUTER, NETWORK GATEWAY 89960 - COMPUTER ASSY, HEADLAMP LEVELING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
