TOYOTA ALPHARD HV ATH10W-PFXGB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

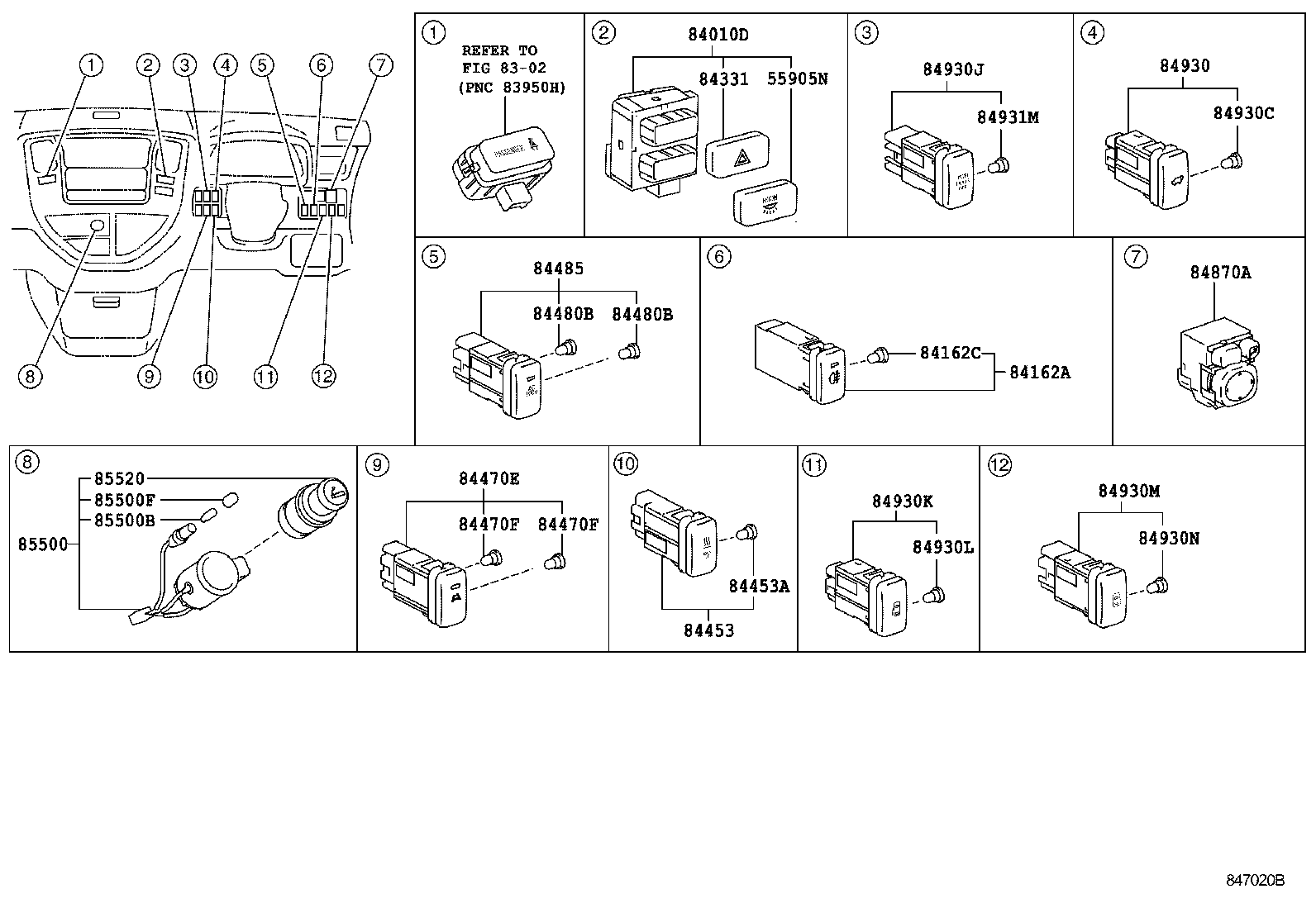

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 8(0504- )

ALPHARD HV | SWITCH RELAY COMPUTER 55905N - KNOB SUB-ASSY, CONTROL, NO.1 ** Refer Fig 84010D - CONTROL & PANEL ASSY, INTEGRATION 84162A - SWITCH, REAR FOG LAMP 84162C - BULB (FOR REAR FOG LAMP SWITCH) 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH 84453 - SWITCH, IDLE UP 84453A - BULB, IDLE UP SWITCH 84470E - SWITCH ASSY, LANE MONITORING MAIN 84470F - BULB, LANE MONITORING MAIN SWITCH 84470F - BULB, LANE MONITORING MAIN SWITCH 84480B - BULB, MAIN SWITCH ASSY 84480B - BULB, MAIN SWITCH ASSY 84485 - SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) 84870A - SWITCH ASSY, OUTER MIRROR 84930 - SWITCH ASSY, DOOR CONTROL 84930C - BULB(FOR DOOR CONTROL SWITCH) 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH 84930M - SWITCH ASSY, AUTO SLIDE DOOR CONTROL 84930N - BULB, AUTO SLIDE DOOR CONTROL SWITCH 84931M - BULB, DOOR CONTROL SWITCH 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85500F - CAP, CIGARETTE LIGHTER BULB 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
